Outdoor Unit Disassembly 33
PCB board 4
Procedure Illustration
1) Remove the screws and then remove
the reactor 1. (2 screws) (see CJ_
Multi_PCB_004-1).
2) Remove the screws and then
remove the reactor 2 (see CJ_Multi_
PCB_004-2).

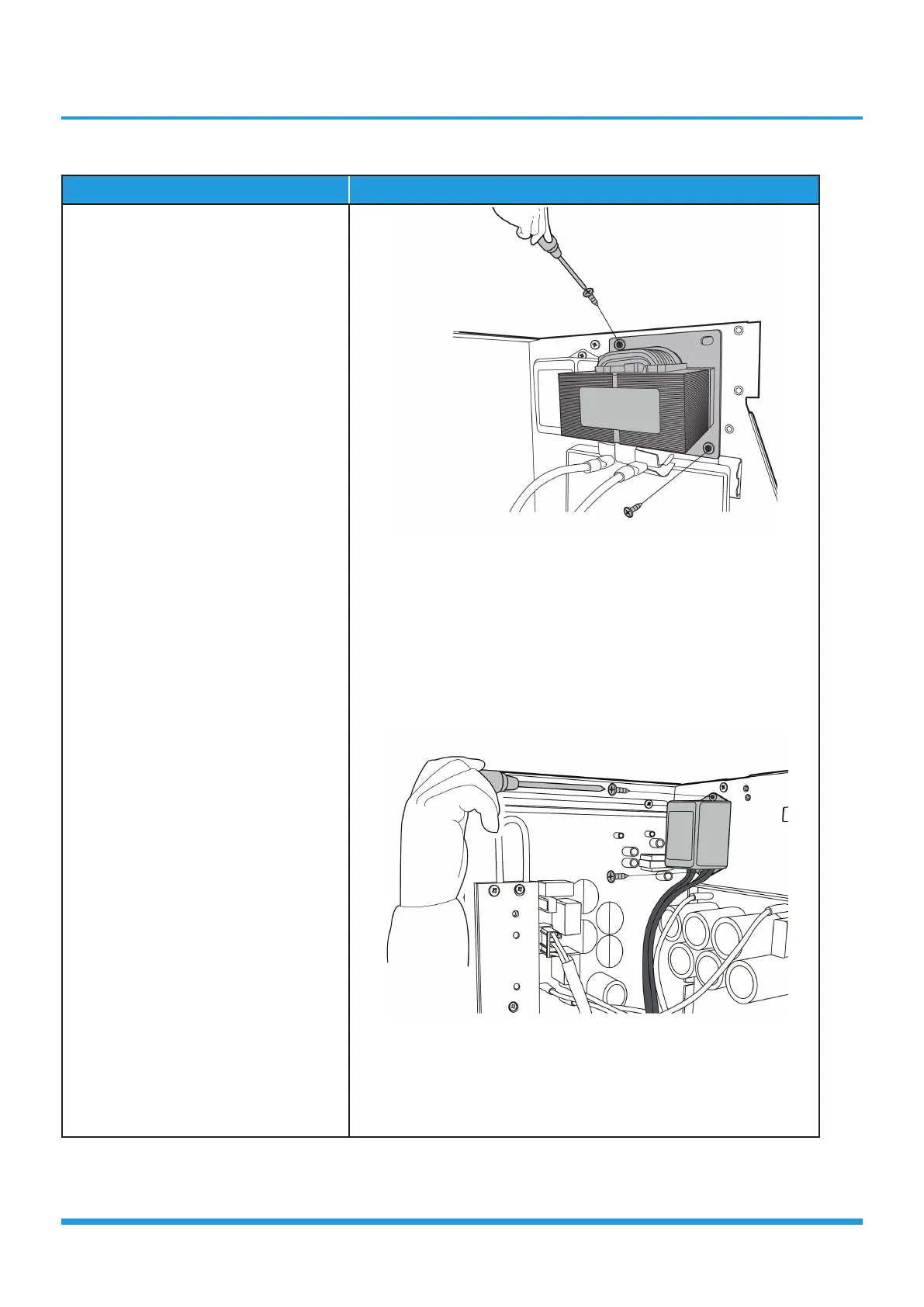

CJ_Multi-PCB_004-1
CJ_Multi-PCB_004-2
Note: This section is for reference only. Actual unit appearance may vary.
