 Outdoor Unit Disassembly 34 

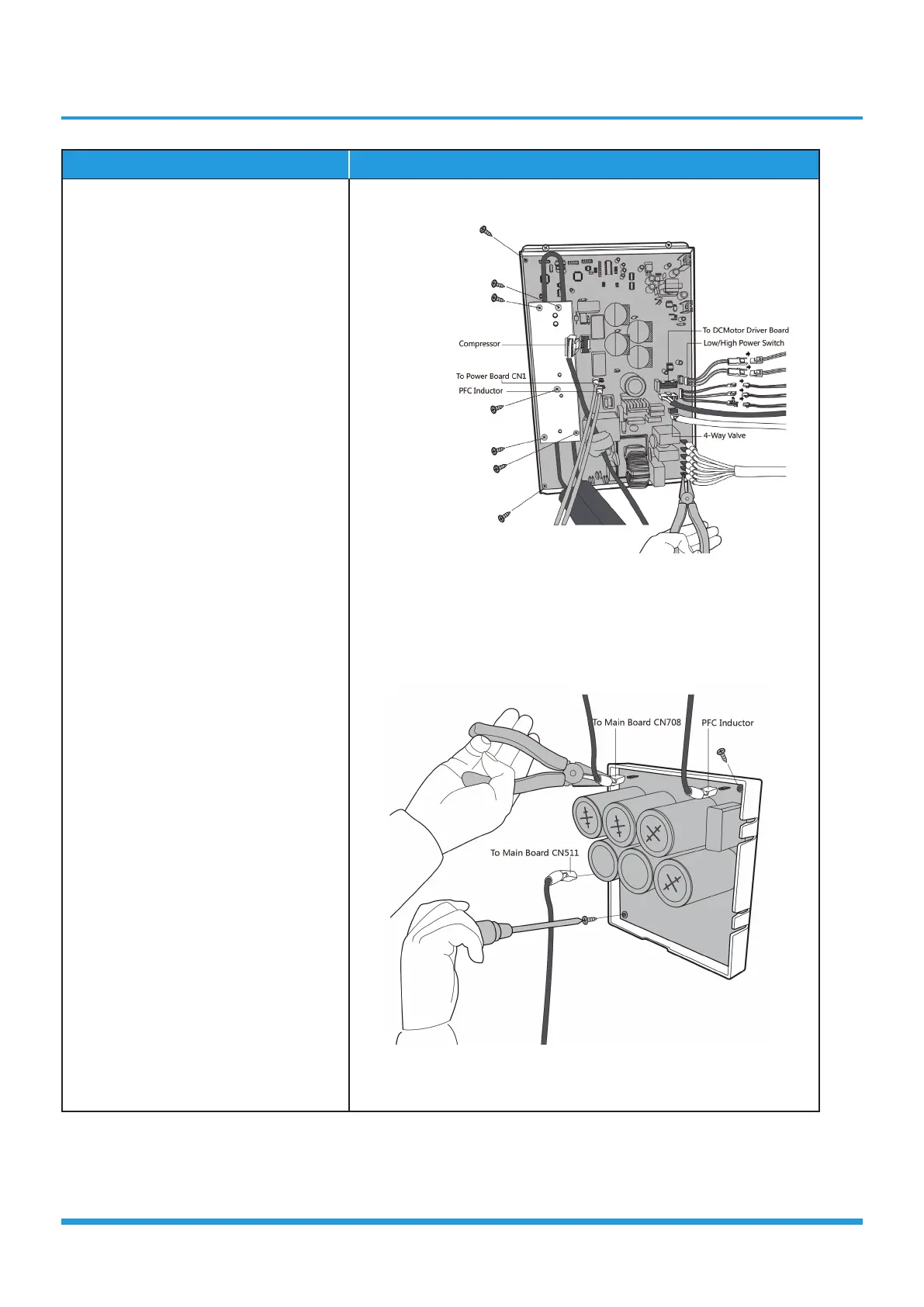

Procedure Illustration
3) Unfix five screws and then remove
the radiating pipe. (see CJ_Multi_
PCB_004-3).
4) Unfix two screws on the main board
(see CJ_Multi_PCB_004-3).
5) Disconnect the connectors on the
main board.(see CJ_Multi_PCB_004-
3).
6) Unfix two screws on the upper board
(see CJ_Multi_PCB_004-4).
7) Remove the connectors on the upper
board (see CJ_Multi_PCB_004-4).
CJ_Multi-PCB_004-3
CJ_Multi-PCB_004-4
Note: This section is for reference only. Actual unit appearance may vary.
