 Outdoor Unit Disassembly 13 
Procedure Illustration

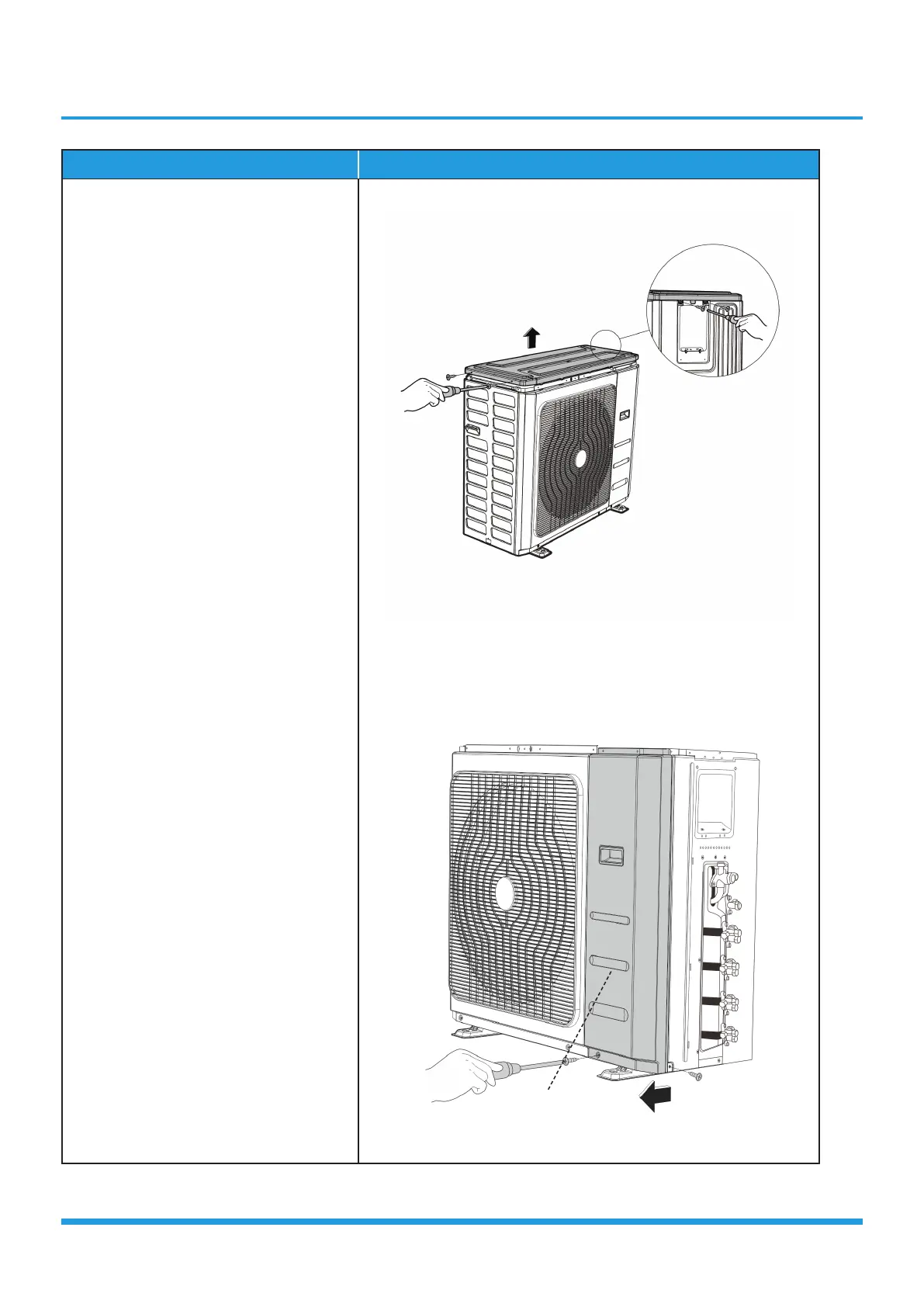

3) Remove the screws of the top cover
and then remove the top cover (4
screws). Two of the screws is located
underneath the big handle (see CJ_
Multi_D30-002).
4) Remove the screws of the front right
panel and then remove the front right
panel (2 screws) (see CJ_Multi_D30-
003).
CJ_Multi_D30-002
CJ_Multi_D30-003
Note: This section is for reference only. Actual unit appearance may vary.
Front Right Panel
