MrCool DIY-MULTI4-36HP230C User Manual

 Outdoor Unit Disassembly 14 
Procedure Illustration

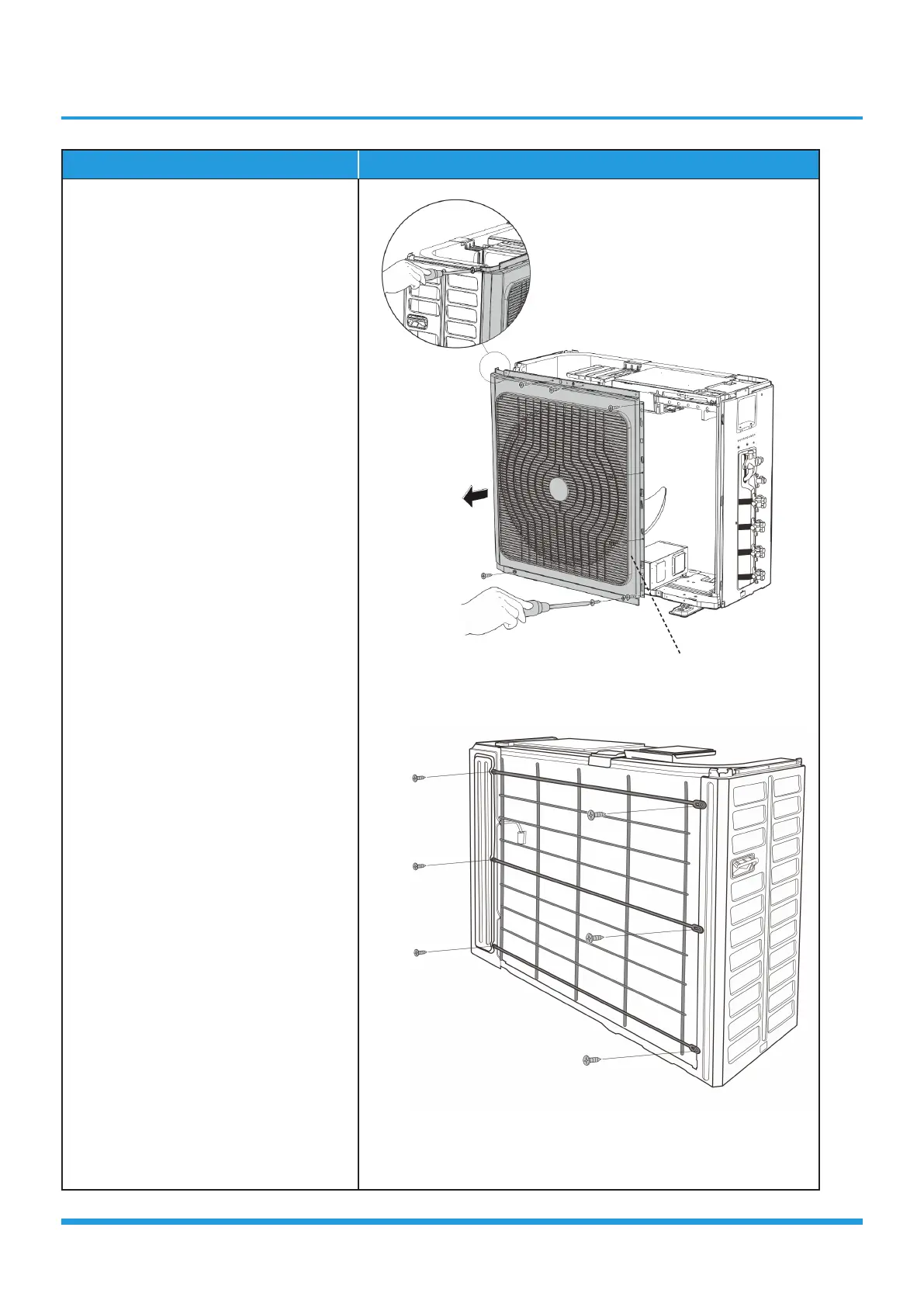

5) Remove the screws of the front panel
and then remove the front panel (9
screws) (see CJ_Multi_D30-004).
6) Remove the screws of the rear net and
then remove the rear net (6 screws)
(see CJ_Multi_D30-005). (for some
models)
CJ_Multi_D30-004
CJ_Multi_D30-005
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
