Outdoor Unit Disassembly 17
Procedure Illustration

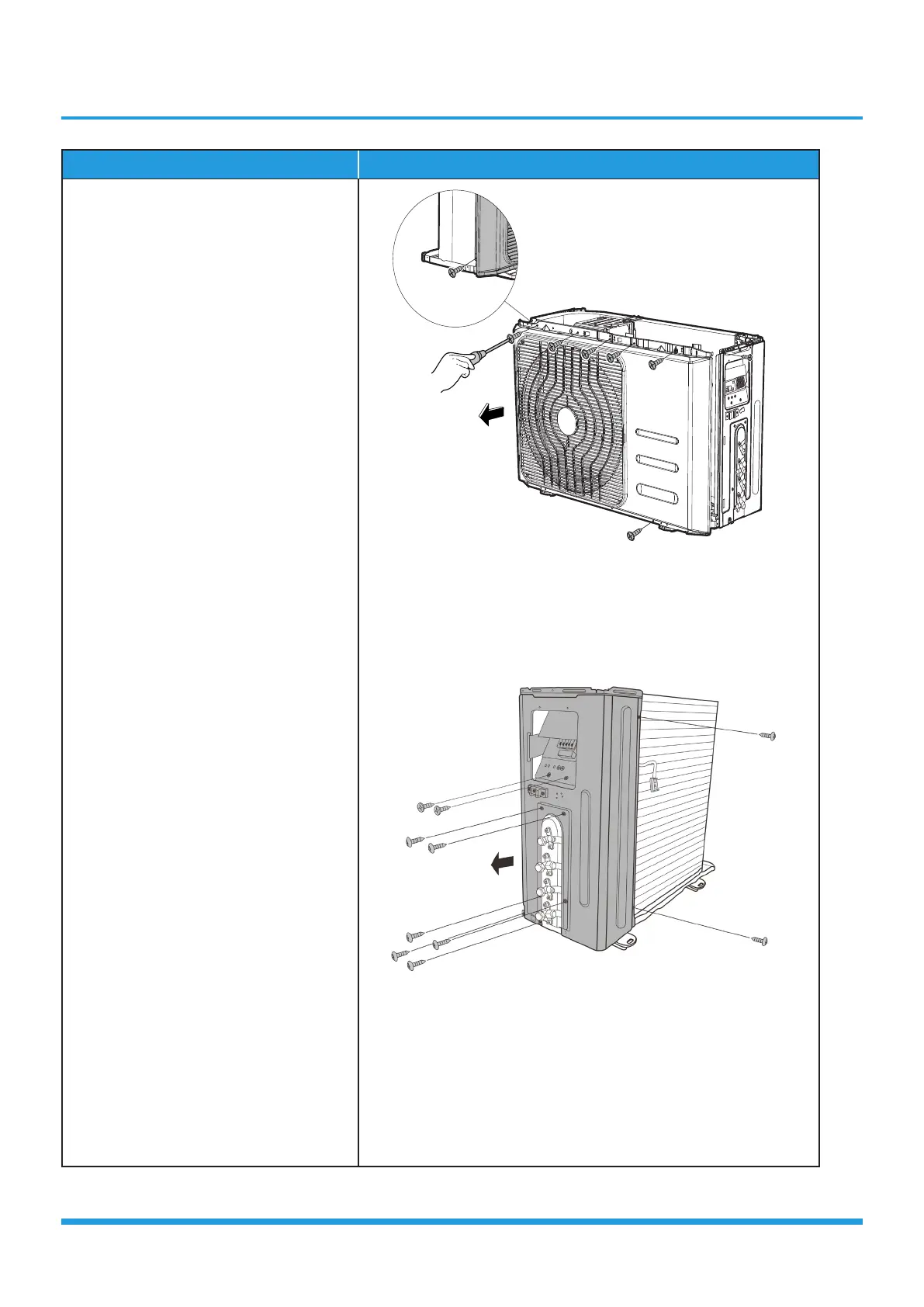

4) Remove the screws of the front panel
and then remove the front panel (8
screws) (see CJ_Multi_B30-003).
5) Remove the screws of the right panel
(10 screws) (see CJ_Multi_B30-004).
CJ_Multi_B30-003
CJ_Multi_B30-004
Note: This section is for reference only. Actual unit appearance may vary.
To Next Page
