Outdoor Unit Disassembly 18
4. CA30
Procedure Illustration
1) Turn off the air conditioner and the
power breaker.
2) Remove the screws of the shield and
then remove it.(3 screws) (see CJ_
Multi_CA30-001).
3) Remove the screws of the top cover
and then remove the top cover (3
screws). One of the screws is located
underneath the big handle (see CJ_
Multi_CA30-002).

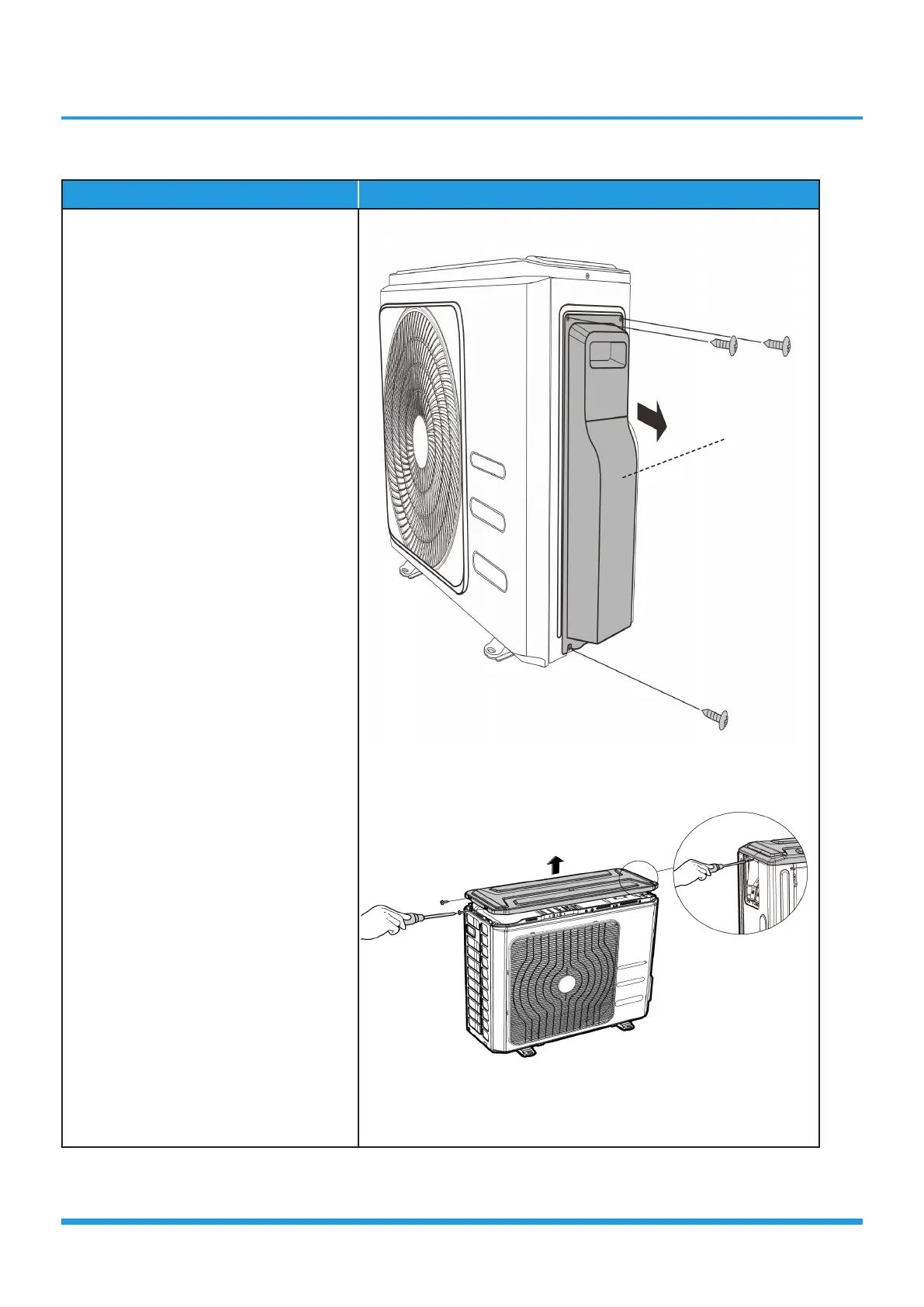

CJ_Multi_CA30-001
CJ_Multi_CA30-002
Note: This section is for reference only. Actual unit appearance may vary.
Shield
To Next Page
