Outdoor Unit Disassembly 19
Procedure Illustration

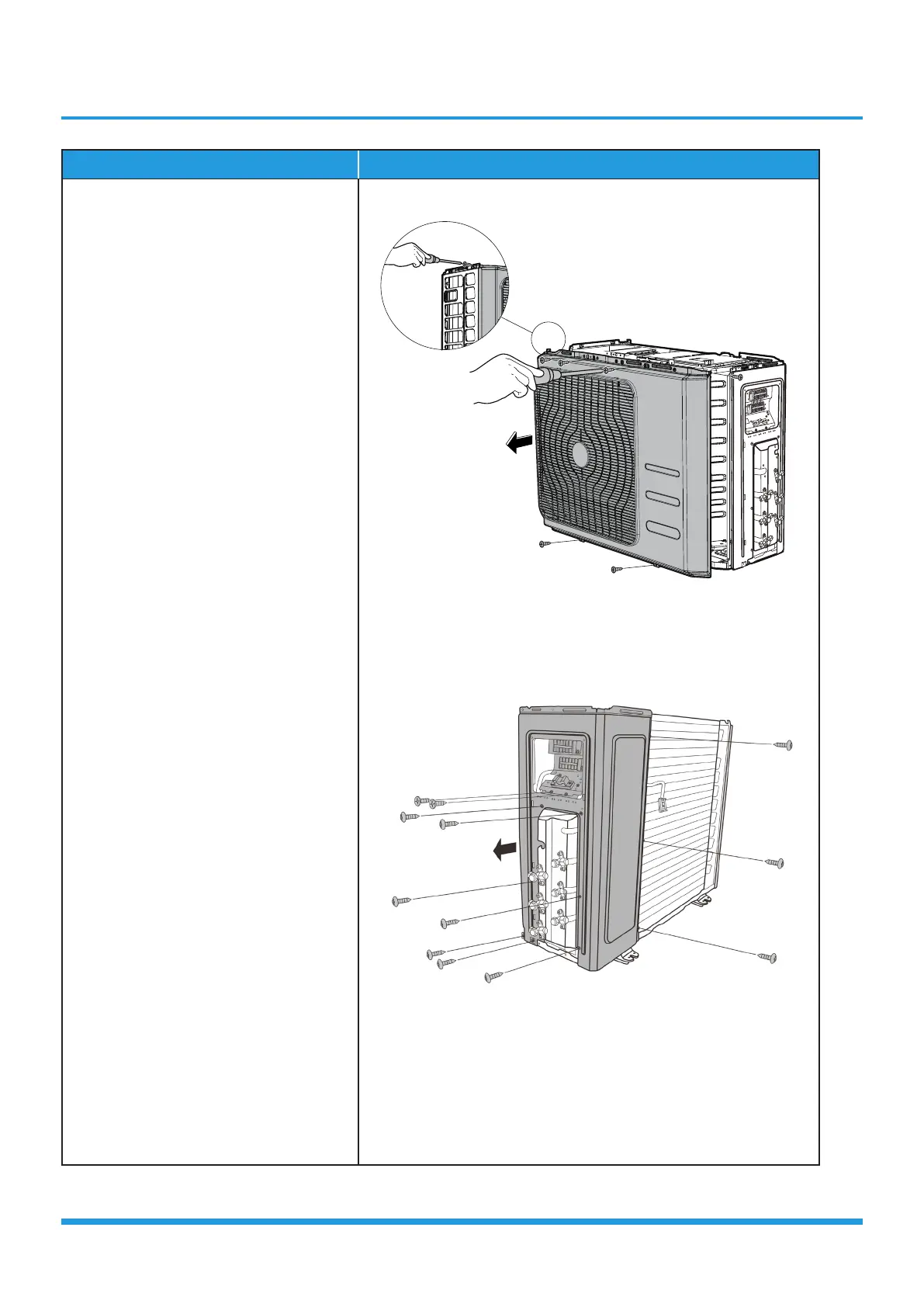

4) Remove the screws of the front panel
and then remove the front panel (7
screws) (see CJ_Multi_CA30-003).
5) Remove the screws of the right panel
and then remove the right panel
(12 screws) (see CJ_CA30_004).
CJ_Multi_CA30-003
CJ_Multi_CA30-004
Note: This section is for reference only. Actual unit appearance may vary.
