Outdoor Unit Disassembly 25
6. X430
Procedure Illustration
1) Turn off the air conditioner and the
power breaker.

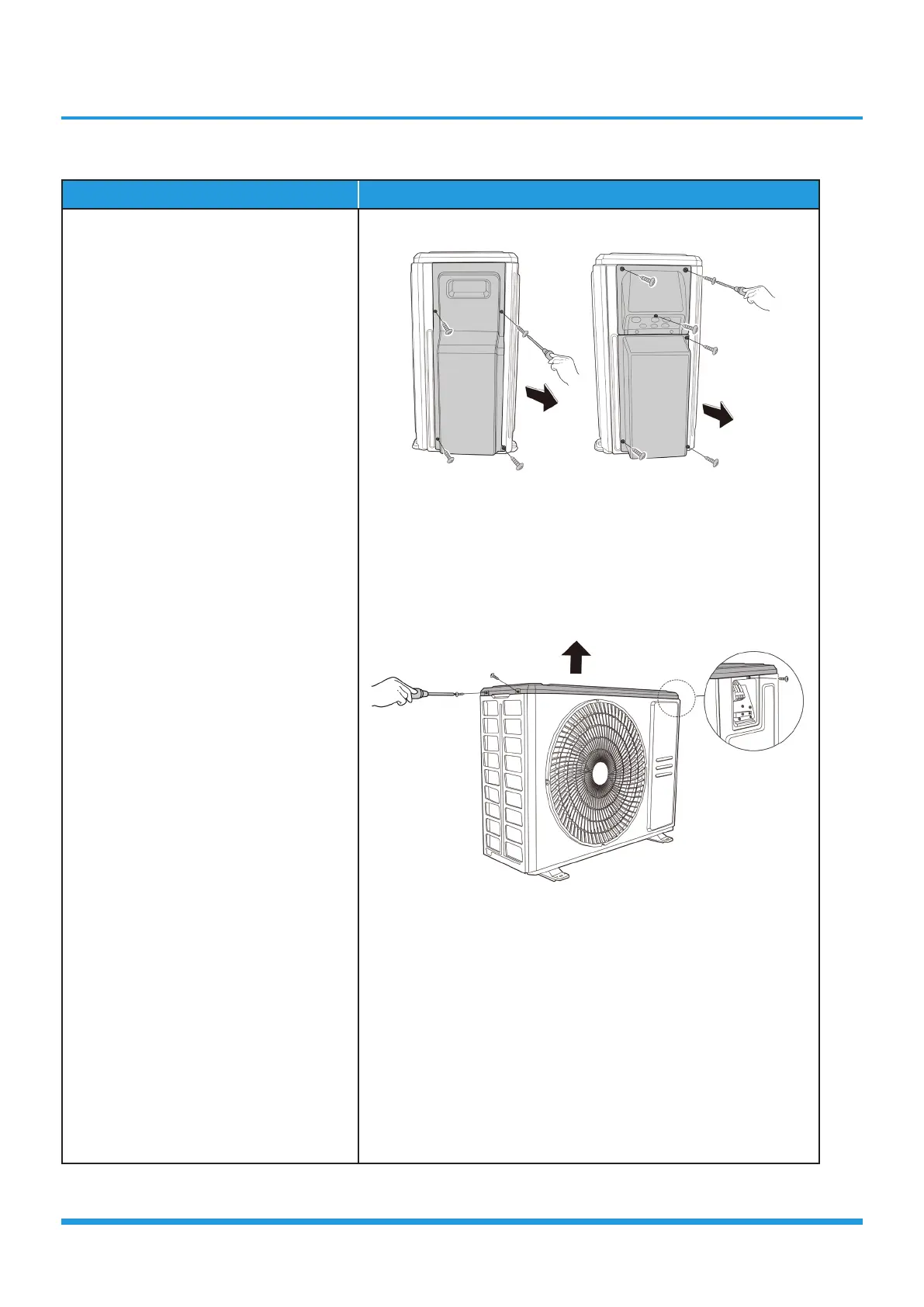

2) Remove the screws of the shield and
then remove it.(4 screws). For US
models, remove the screws of big
handle assembly and water collector
then remove them.(6 screws) (see
CJ_Multi_X430_001).
3) Remove the screws of the top cover
and then remove the top cover (3
screws). One of the screws is located
underneath the big handle (see CJ_
Multi_X430_002).
CJ_Multi_X430_001
CJ_Multi_X430_002
Note: This section is for reference only. Actual unit appearance may vary.
For US models
To Next Page
