Outdoor Unit Disassembly 26
Procedure Illustration

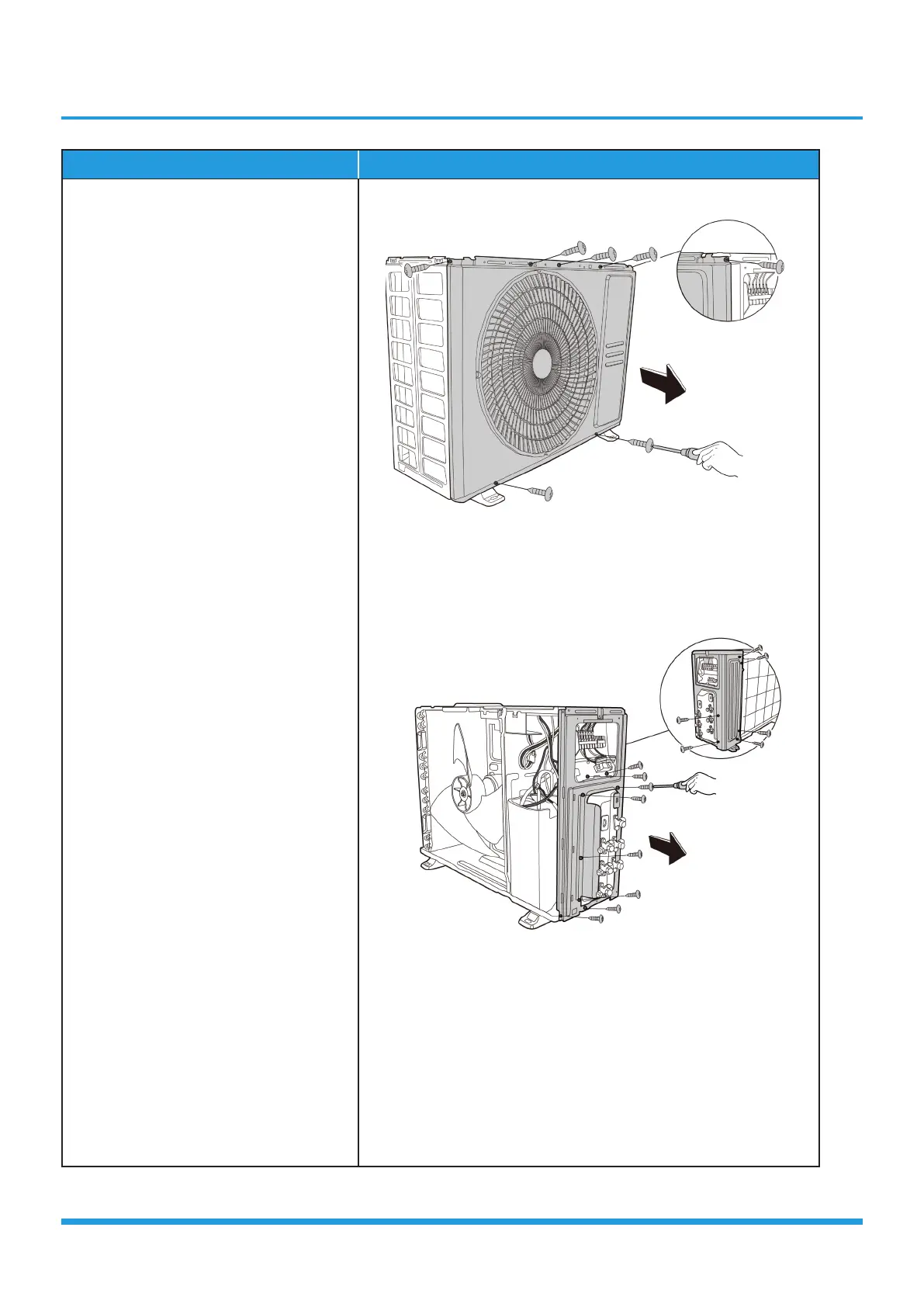

4) Remove the screws of the front panel
and then remove the front panel (7
screws) (see CJ_Multi_X430_003).
5) Remove the screws of the right panel
and then remove the right panel
(14 screws, two of them are used to fix
the optional rear net) (see CJ_Multi_
X430_004).
CJ_Multi_X430_003
CJ_Multi_X430_004
Note: This section is for reference only. Actual unit appearance may vary.
