MrCool HHP140 Series User Manual

OUTDOOR UNIT
mrcool.com | Page 6
Applicable for 18k, 24k, 30k, 36k, 42k, 48k, 60k cooling only type
Applicable for 18k, 24k, 30k, 36k, 42k, 48k, 60k cooling & heating type
1. Grounded and all wiring to conform to I.E.C.
2. Replacement wire must be the same gauge and insulation type as original wire.
3. The units should install the stated-cross-section ground wire and keep it
grounding properly and reliably.
4. According to the actual connection of low-voltage switch or short wiring.
1. Grounded and all wiring to conform to I.E.C.
2. Replacement wire must be the same gauge and insulation type as original wire.
3. The units should install the stated-cross-section ground wire and keep it
grounding properly and reliably.
4. For indoor transformer, the current of 24V load voltage is not less than 1.5A.
Fig. 4-1
Fig. 4-2

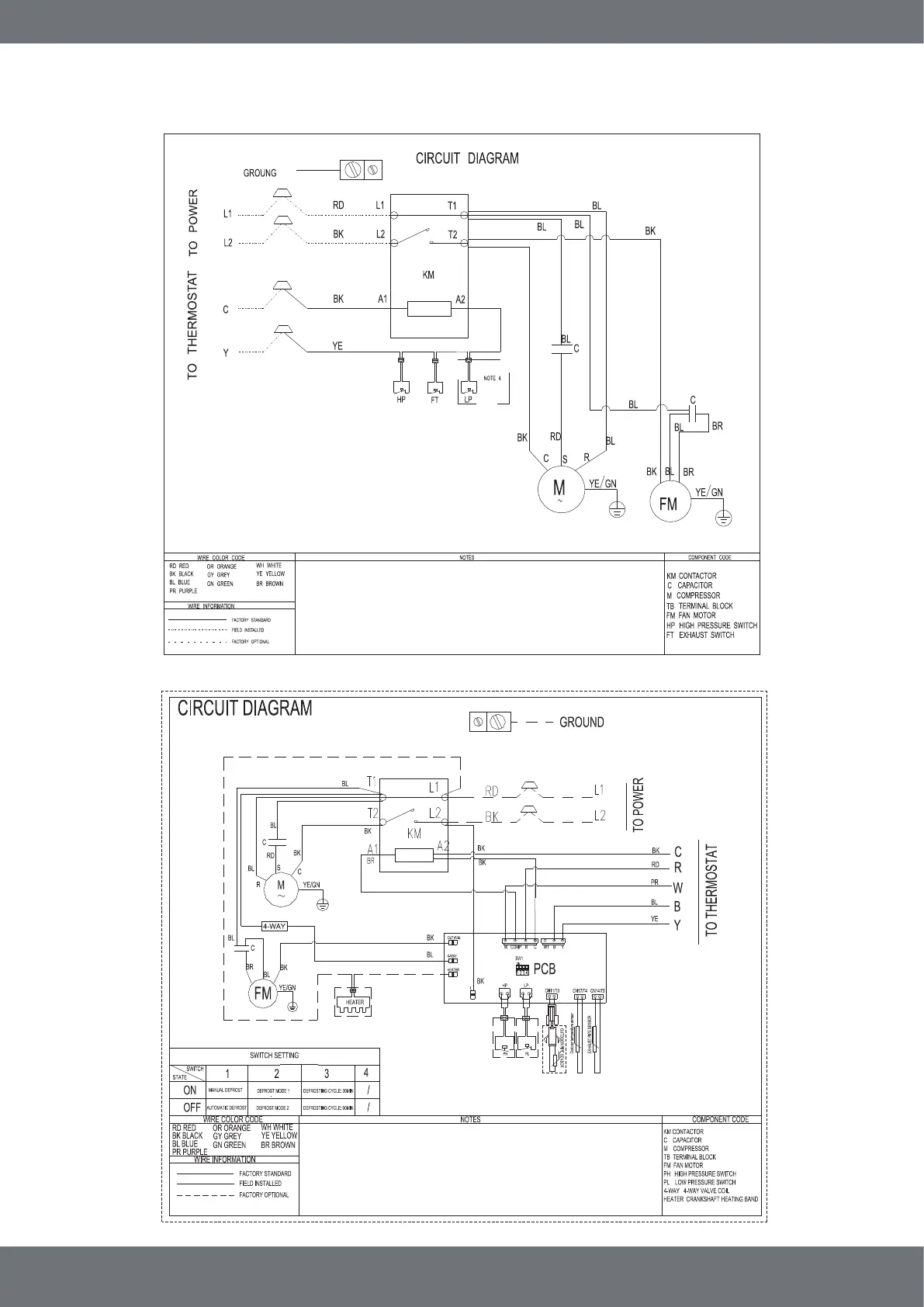

4. Wiring Diagrams

MrCool HHP140 Series Specifications

General

Brand	MrCool
Model	HHP140 Series
Category	Air Conditioner
Language	English
