Page 13
mrcool.com
Indoor Unit Installation
Wall
Indoor Outdoor
Fig.3.2
0.2 - 0.3 in
(5 - 7 mm)

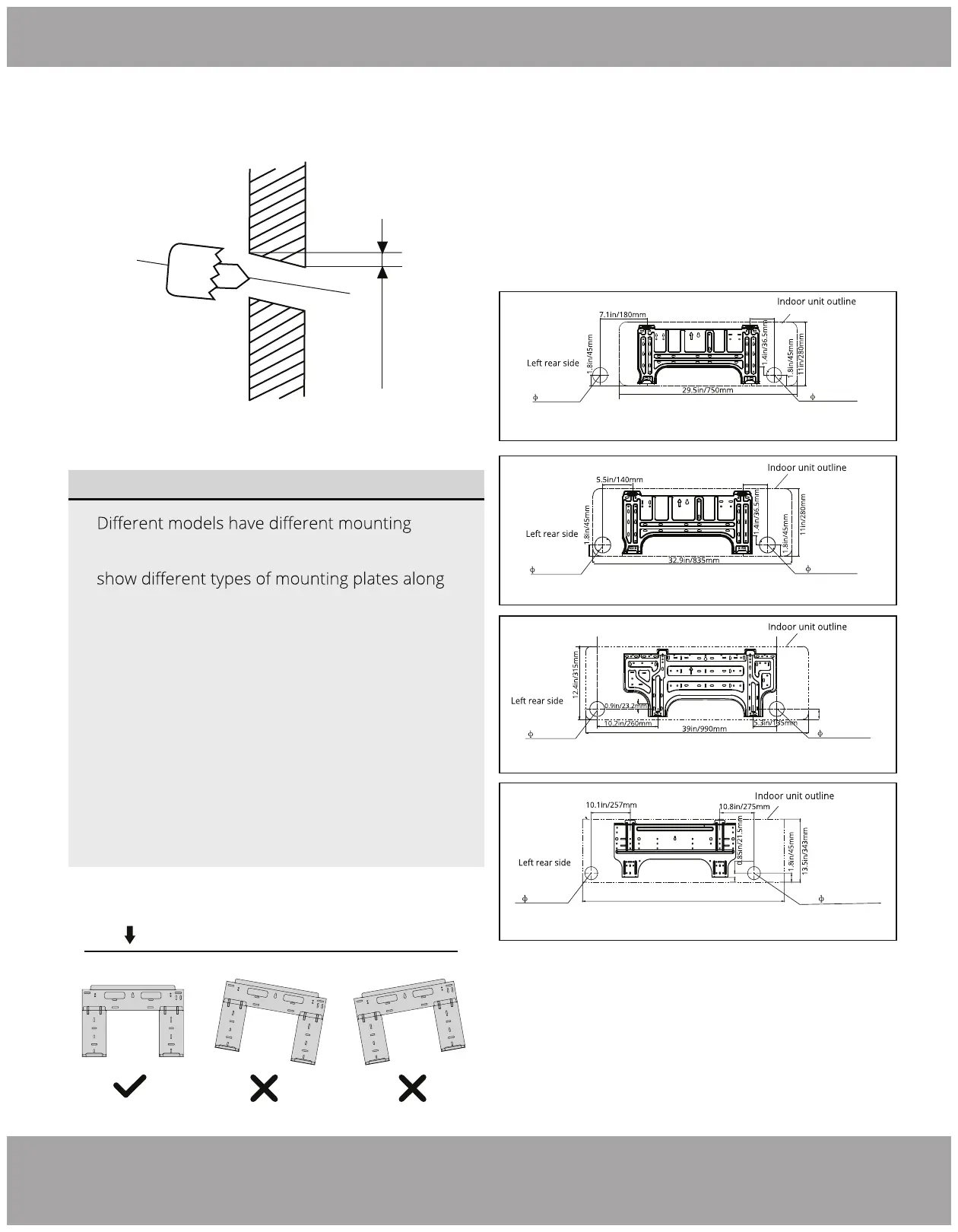

MOUNTING PLATE DIMENSIONS
plates.
In order to ensure that you have ample room to
mount the indoor unit, the diagrams to the right
with the following dimensions:
• Width of mounting plate
• Height of mounting plate
• Width of indoor unit relative to plate
• Height of indoor unit relative to plate
• Recommended position of wall hole (both to
the left and right of mounting plate)
• Relative distances between screw holes
Fig. 3.3
Correct orientation of Mounting Plate
46.7in/1186mm
3.5in/89mm 3.5in/89mm
refrigerant
pipe hole
Right rear side
refrigerant
pipe hole
Series 24K Models
Series 18K Models
refrigerant
pipe hole
Right rear side
refrigerant
pipe hole
2.6in/65mm 2.6in/65mm
1.8in/45mm
4.3in/11mm
2.6in/65mm 2.6in/65mm
refrigerant
pipe hole
Right rear side
refrigerant
pipe hole
Series 12K Models
4.3in/11mm
2.6in/65mm 2.6in/65mm
refrigerant
pipe hole
Right rear side
refrigerant
pipe hole
Series 9K Models
To Next Page
