MSA DESIGN AND FUNCTIONING
6 MSA FSR
1 nose clip
2 mouthpiece (gum)
3 chin support
4 CO catalyst (hopcalite / noble metal)
5 dryer
6 dust filter
7 coarse-dust filter bag
8 head strap
9 heat exchanger
10 exhalation valve
inhalation air
exhalation air

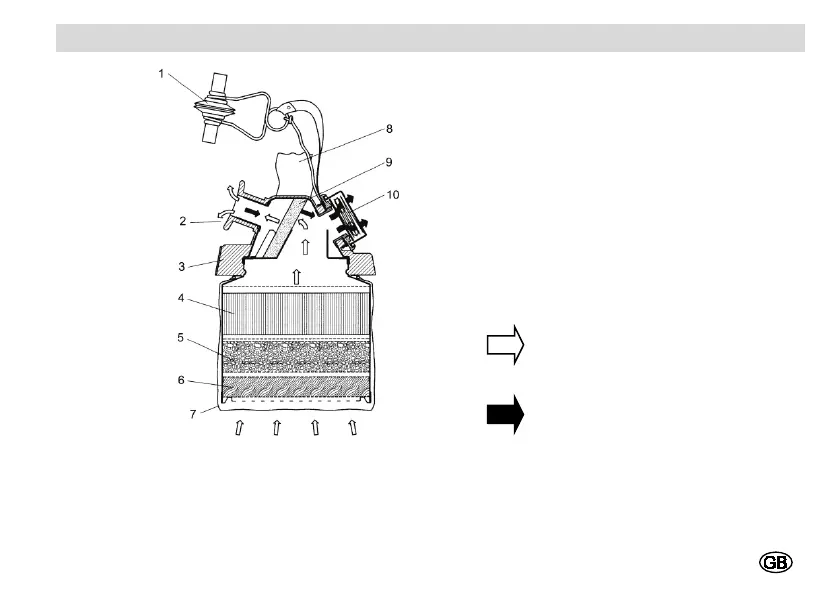

MSA filter self-rescuer W 65 (Australia, schematic design) Fig. 1
