MSD 6014 User Manual

INSTALLATION INSTRUCTIONS 7
MSD • WWW.MSDPERFORMANCE.COM • (915) 855-7123 • FAX (915) 857-3344
CUSTOM 1: This tab contains two sub tabs with plots that are similar to MSD PN6010/
PN6012 ignition controllers. The “Engine Speed” tab is similar to springs and weights that
would normally be found in a distributor. Set the base timing at your idle RPM and draw

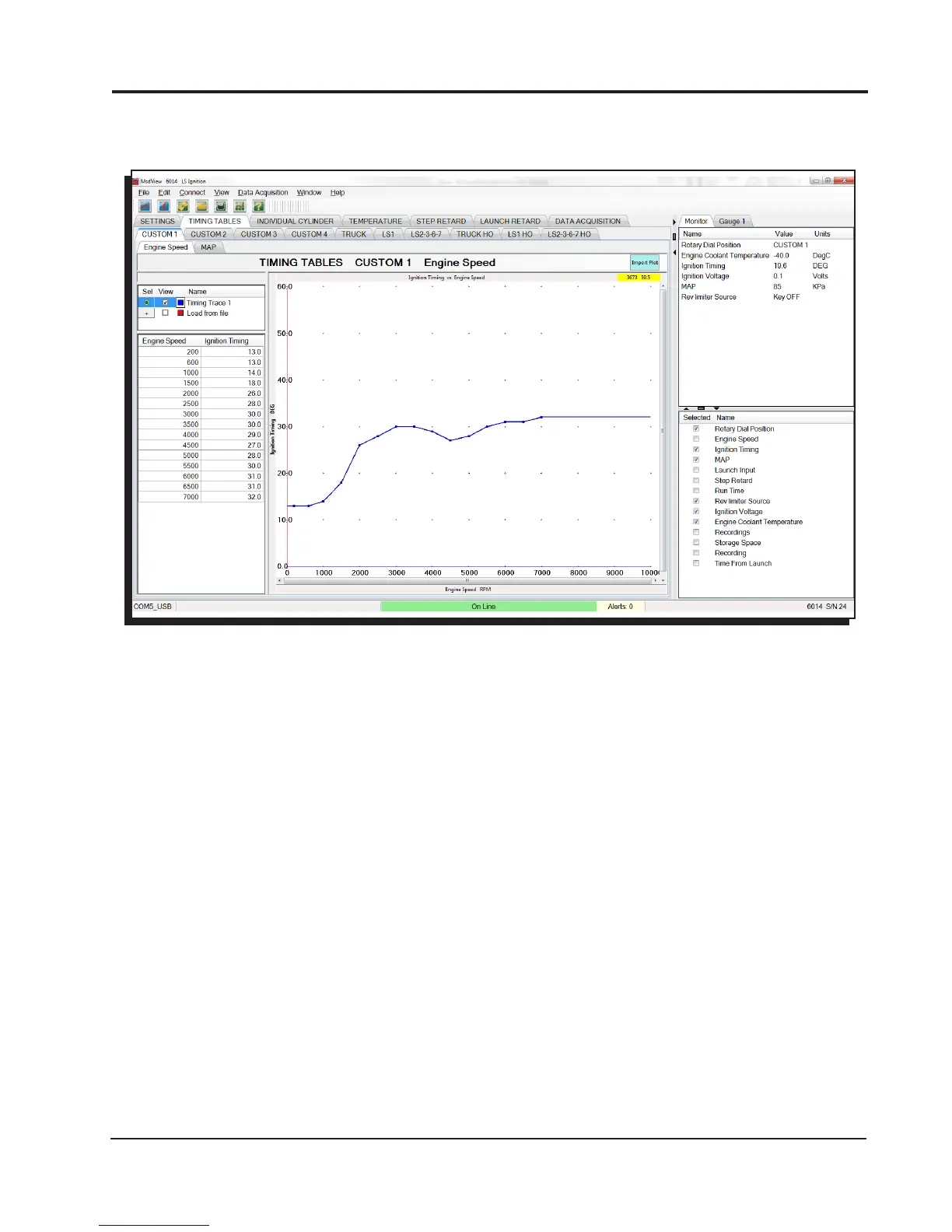

Figure 4 Custom Timing Table 1
the advance curve as a normal distributor would. The “MAP” table represents a vacuum
advance canister as well as a boost retard. Under a vacuum, it should advance the timing
(positive values) and under boost it should retard values (negative numbers).
CUSTOM 2-4: These tabs are standard 3-D timing tables. The ignition timing will corre-
spond to the value in the cell (the applicable cell being dened by RPM and engine load).
TRUCK: This tab is a timing table to be used on 4.8, 5.3 and 6.0L motors with low octane
fuel.
LS1: This tab is a timing table to be used on a LS1 with low octane fuel.
LS2-3-6-7: This tab is a timing table to be used on a LS2-3-6-7 or 6.2L truck motor with low
octane fuel.

MSD 6014 Specifications

General

Product Name	MSD 6014
Category	Controller
Type	Ignition Control
Rev Limiter	Yes
Voltage	12 V
Input Voltage	12 V
