MSD 6AL-2 User Manual

18 INSTALLATION INSTRUCTIONS
MSD • WWW.MSDPERFORMANCE.COM • (915) 855-7123 • FAX (915) 857-3344

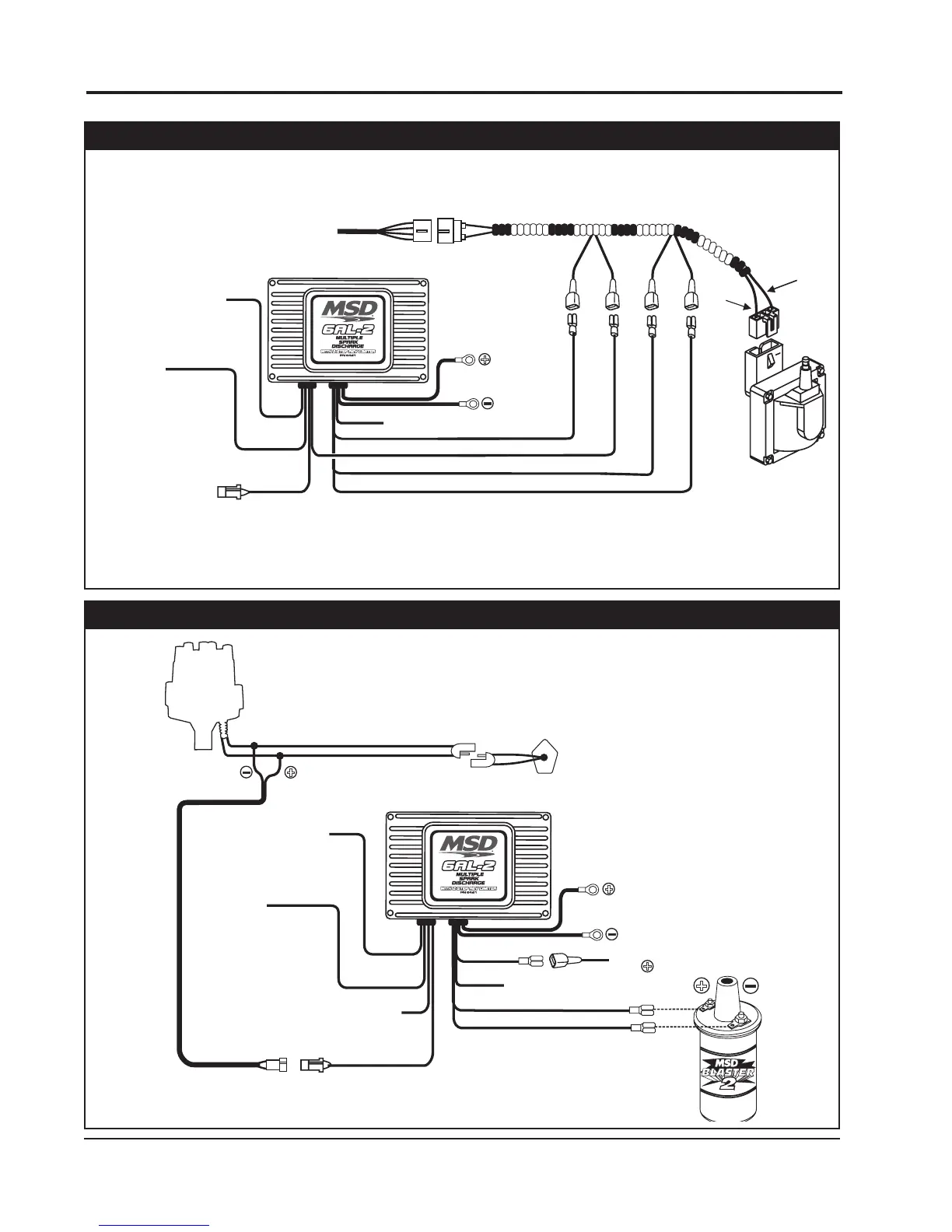

FORD IGNITIONS Wiring a Ford TFI with Harness, PN 8874.
COIL
+
ORANGE
BLACK
MSD HARNESS PN 8874
FACTORY HARNESS
(UNPLUGGED FROM COIL)
MAGNETIC PICKUP
(NOT USED)
HEAVY RED
HEAVY BLACK
TO BATTERY
TO BATTERY
+
RED
GREEN (-)
VIOLET (+)
WHITE
BLACK
ORANGE
BLUE
WHITE/BLUE
HALL-EFFECT
(NOT USED)
2-STEP/LAUNCH
(12V TO ACTIVATE)
GRAY
TACH OUTPUT
RED
WHITE
BLACK
ORANGE
NOTE: Installation of a Timing Control with the Harness, see page 15.
CHRYSLER IGNITIONS Wiring a Chrysler Electronic Ignition using Magnetic Pickup Trigger.
+
HEAVY RED
HEAVY BLACK
TO BATTERY
TO BATTERY
+
ORANGE (TO COIL +)
BLACK (TO COIL -)
RED
GREEN (-)
VIOLET (+)
BLUE
WHITE/BLUE
HALL-EFFECT
(NOT USED)
2-STEP/LAUNCH
(12V TO ACTIVATE)
FROM ORIGINAL
COIL TERMINAL
+
MAGNETIC PICKUP
CONNECTOR
DISTRIBUTOR
VIOLET
BLACK (M-)
ORANGE (M+)
GREEN
CHRYSLER MODULE
LEAVE DISCONNECTED
+
WHITE
(NOT USED)
GRAY
TACH OUTPUT

MSD 6AL-2 Specifications

General

Ignition Type	Capacitive Discharge
Spark Energy	135 mJ per spark
Operating Voltage	12-18 volts
Weight	3 lbs
Maximum Voltage	18V
Compatibility	For 4, 6, and 8-cylinder engines
