INSTALLATION INSTRUCTIONS 3
MSD • WWW.MSDPERFORMANCE.COM • (915) 855-7123 • FAX (915) 857-3344
2-PIN CONNECTOR, ACCESSORIES
PINK Pin-B Step Retard. When 12-volts are supplied, the Step Retard is activated.
BLUE Pin-A Two-Step. When 12-volts are supplied, the RevLaunch rpm value is active.
16-PIN CONNECTOR WIRE LOCATION
GRAY Pin-A Ground
PINK Pin-B 12 Volt Supply
BROWN/WHITE Pin-C Cam Sensor Signal
RED/GREEN Pin-D Coil-2
BROWN/GREEN
Pin-E Coil-4
WHITE/BLUE Pin-F Coil-6
VIOLET/BLUE Pin-G Coil-8
YELLOW Pin-H Tach
BROWN Pin-J Sensor Ground
LT. GREEN Pin-K MAP Sensor Signal
RED Pin-L Coil-7
GREEN Pin-M Coil-5
LT. BLUE Pin-N Coil-3
VIOLET Pin-P Coil-1
ORANGE/YELLOW
Pin-R Crank Sensor Signal
ORANGE Pin-S 5 Volt Supply

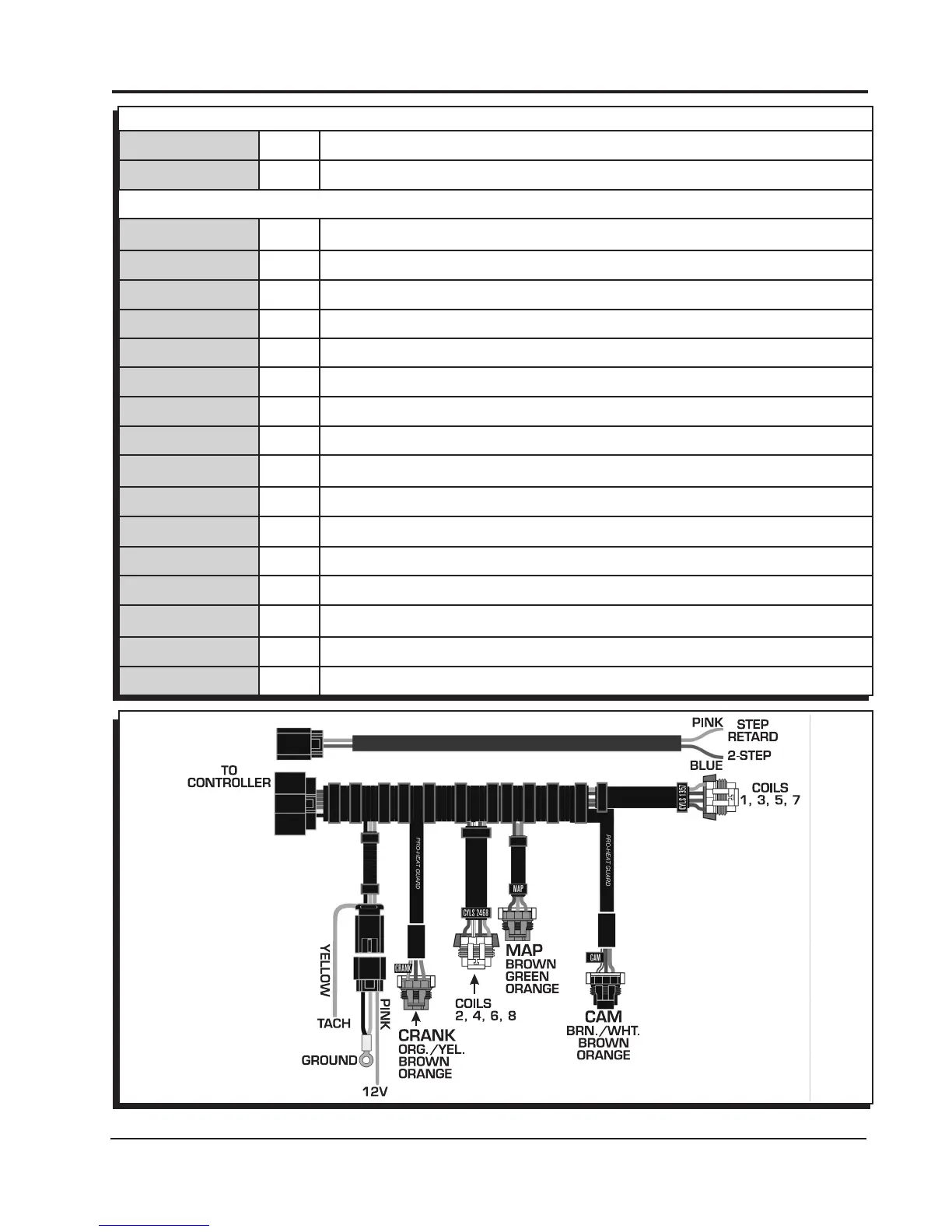

Figure 1 Wiring the MSD 6LS-2 Controller.
