MSI 651M-V - Back Panel Connectivity Options; PS;2 Mouse and Keyboard Ports

2-10
MS-7005 Micro ATX Mainboard
Keyboard Connector
The mainboard provides a standard PS/2
®
keyboard mini DIN connector for
attaching a PS/2
®
keyboard. You can plug a PS/2
®
keyboard directly into this connector.

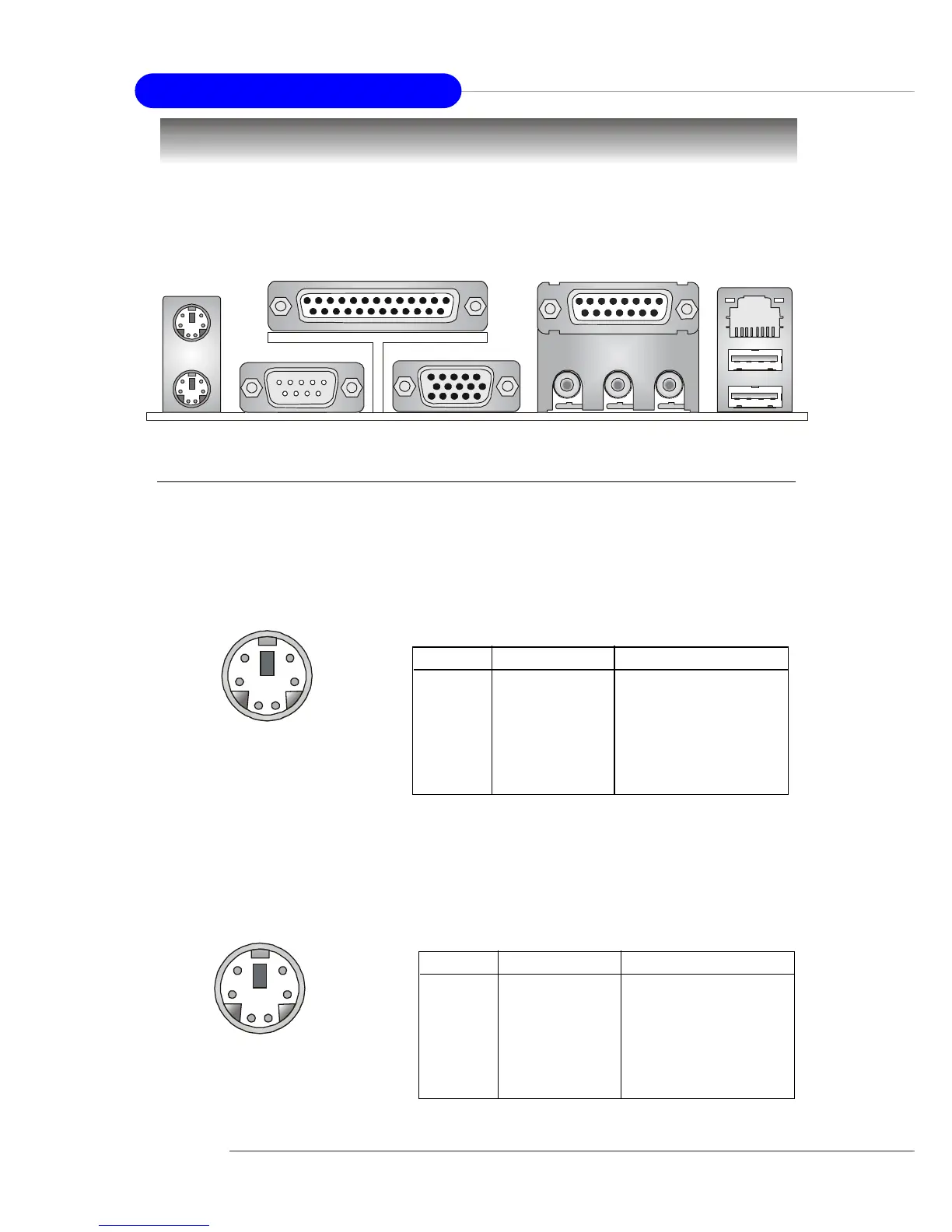

The back panel provides the following connectors:
Back Panel
Mouse Connector
The mainboard provides a standard PS/2
®
mouse mini DIN connector for attach-
ing a PS/2
®
mouse. You can plug a PS/2
®
mouse directly into this connector. The
connector location and pin assignments are as follows:
PIN SIGNAL DESCRIPTION
1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection
Pin Definition
Mouse
Parallel
USB PortsKeyboard L-in MICL-out
LAN
COMA
VGA Port
Midi/Joystick
PS/2 Mouse
(6-pin Female)
2
1
3
4
5
6
PS/2 Keyboard
(6-pin Female)
2
1
3
4
5
6
PIN SIGNAL DESCRIPTION
1 Keyboard DATA Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection
Pin Definition
