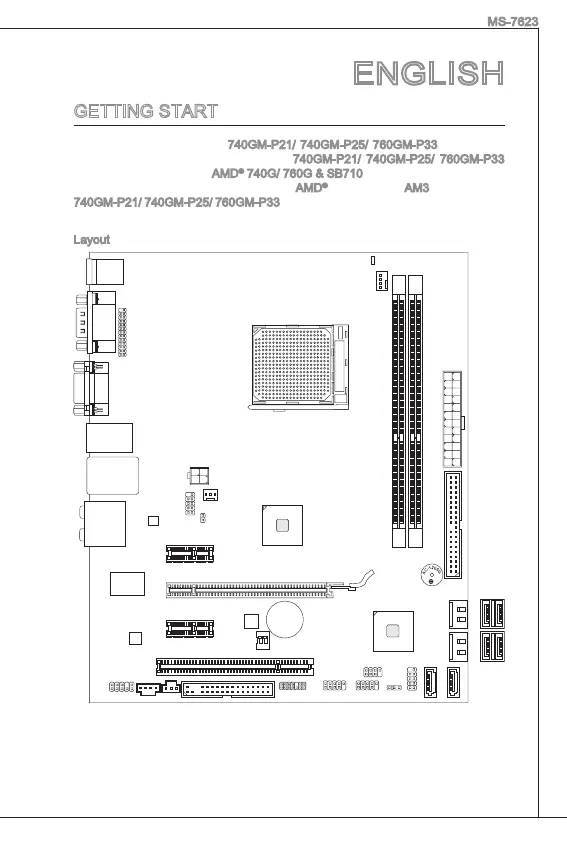

MSI 740GM-P25 Series User Manual






       



󰘲 󰘰   

   



IDE 1
JP WR1
JP WR2
JC OM1
BATT
+
SOCKET AM3
FD D1
JC D1
JS P1
JA UD1
Top : mouse
Bo tto m:keybo ard
Top: L AN Jack
Bo tto m: US B port s
USB por ts
T:Li ne- In
M: Lin e- Ou t
B: MIC -In t
JLPT1
CO M Por t
VG A port
JT PM1 JU SB1 JU SB2
JFP2
JFP1
SATA5_ 6
SATA1 SATA2
SATA3_ 4
JCI1
AM D
SB710
CP UFAN
SYSFAN 1
DI MM1 DI MM2
PCI1
PCI_E1
PCI_E2
PCI_E3
JB AT1
AMD
740G/ 760G
(Optio nal)
T: RS-Out (Optional)
M: CS-Out (Optional)
B: SS-Out (Optional)
ON
12
OC_SW1
(Optional)
LED1 (Optional)

MSI 740GM-P25 Series Specifications

General

Socket	AM3
Form Factor	Micro ATX
Memory Type	DDR3
Memory Slots	2
Max Memory	8 GB
PCI Express x16 Slots	1
PCI Express x1 Slots	1
PCI Slots	2
Chipset	AMD 740G
SATA Ports	4
Video Outputs	VGA
Audio	Realtek
LAN	Realtek
