Overview of Components

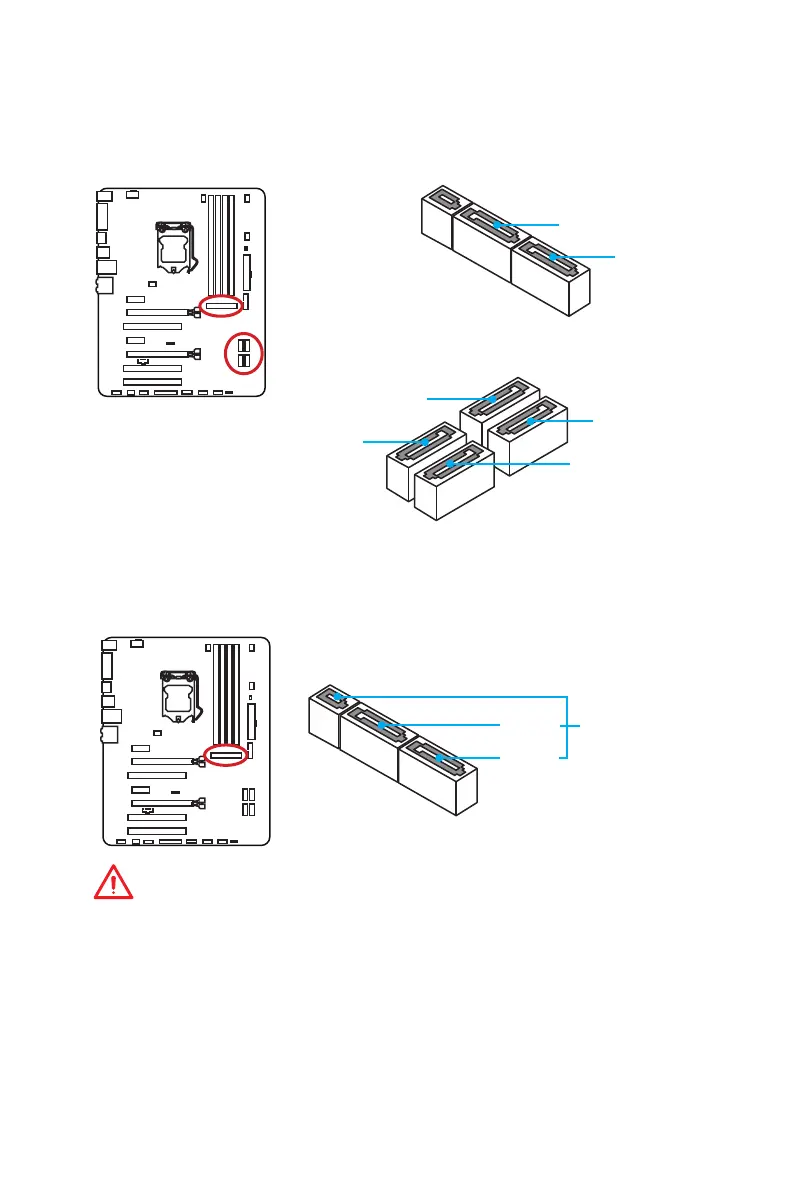

SE1_21: SATAe Connector
This connector is SATAe (SATA Express) interface port. The SATAe connector can be
used with a single SATAe device or two legacy SATA devices.
SATA1
SATA2
SATAe1
Important
● Please do not fold the SATA or SATAe cable at a 90-degree angle. Data loss may
result during transmission otherwise.
● SATA or SATAe cables have identical plugs on either sides of the cable. However,
it is recommended that the flat connector be connected to the motherboard for
space saving purposes.
SATA5
SATA3
SATA2
SATA6
SATA4
SATA1
SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to
one SATA device.

MSI 7978-003R Specifications

General

Brand	MSI
Model	7978-003R
Category	Motherboard
Language	English
