Realtek Audio
MS-7623
Appendix A
A-5
Realtek Audio
MS-7623
Appendix A
Hardware Default Setting

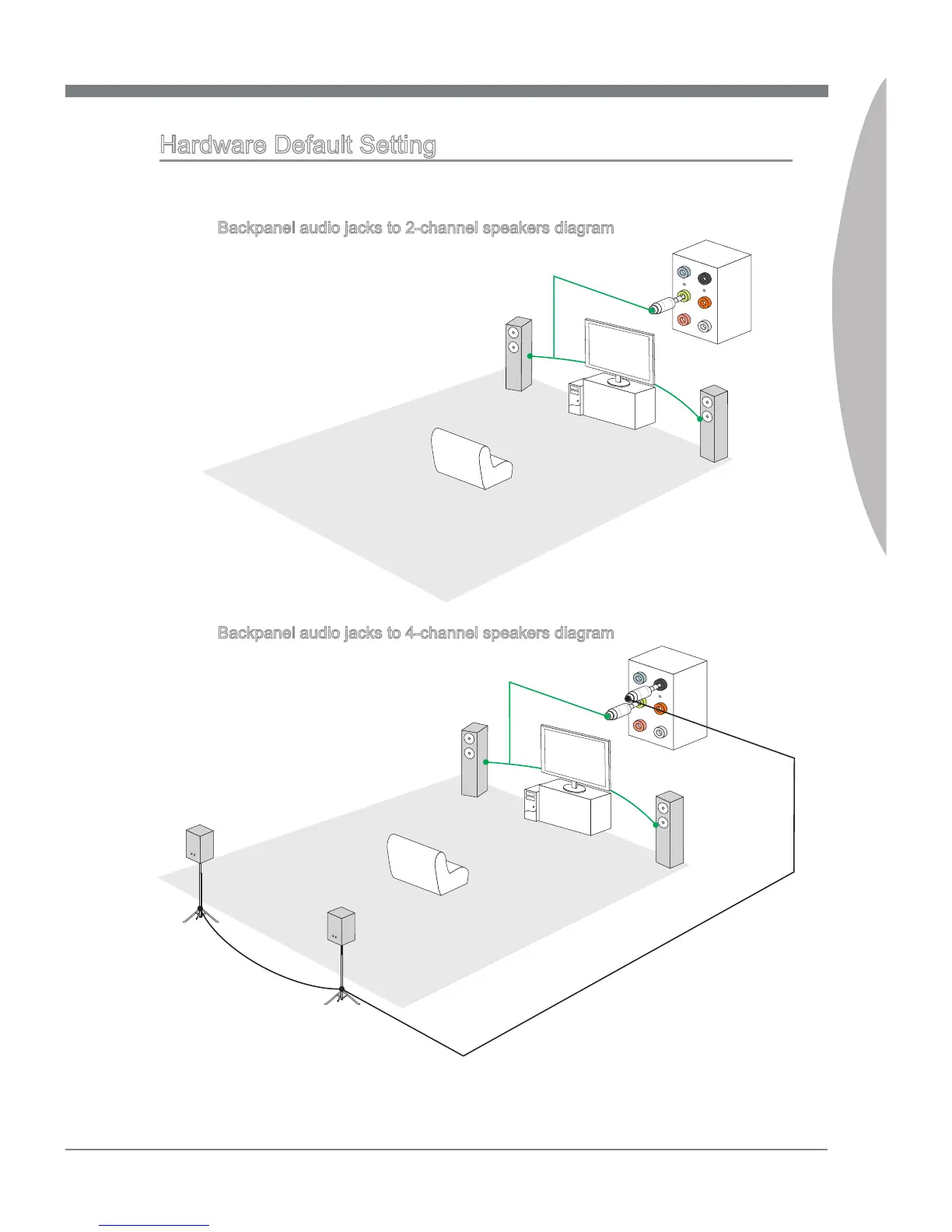

The following diagrams are audio back panel default setting.
Backpanel audio jacks to 2-channel speakers diagram
Front
Backpanel audio jacks to 4-channel speakers diagram
Rear
Front
■
■
