MSI 945GCM5 Series User Manual

MS-7267 Mainboard
A-22
n 8-Channel Mode for 8-Speaker Output
Description:
Connect two speakers to back
panel’s Line Out connector, two
speakers to the rear-channel
Line out connector, two speak-
ers to the center/subwoofer-
channel Line Out connector and
two speakers to the side-chan-
nel Line Out connector.

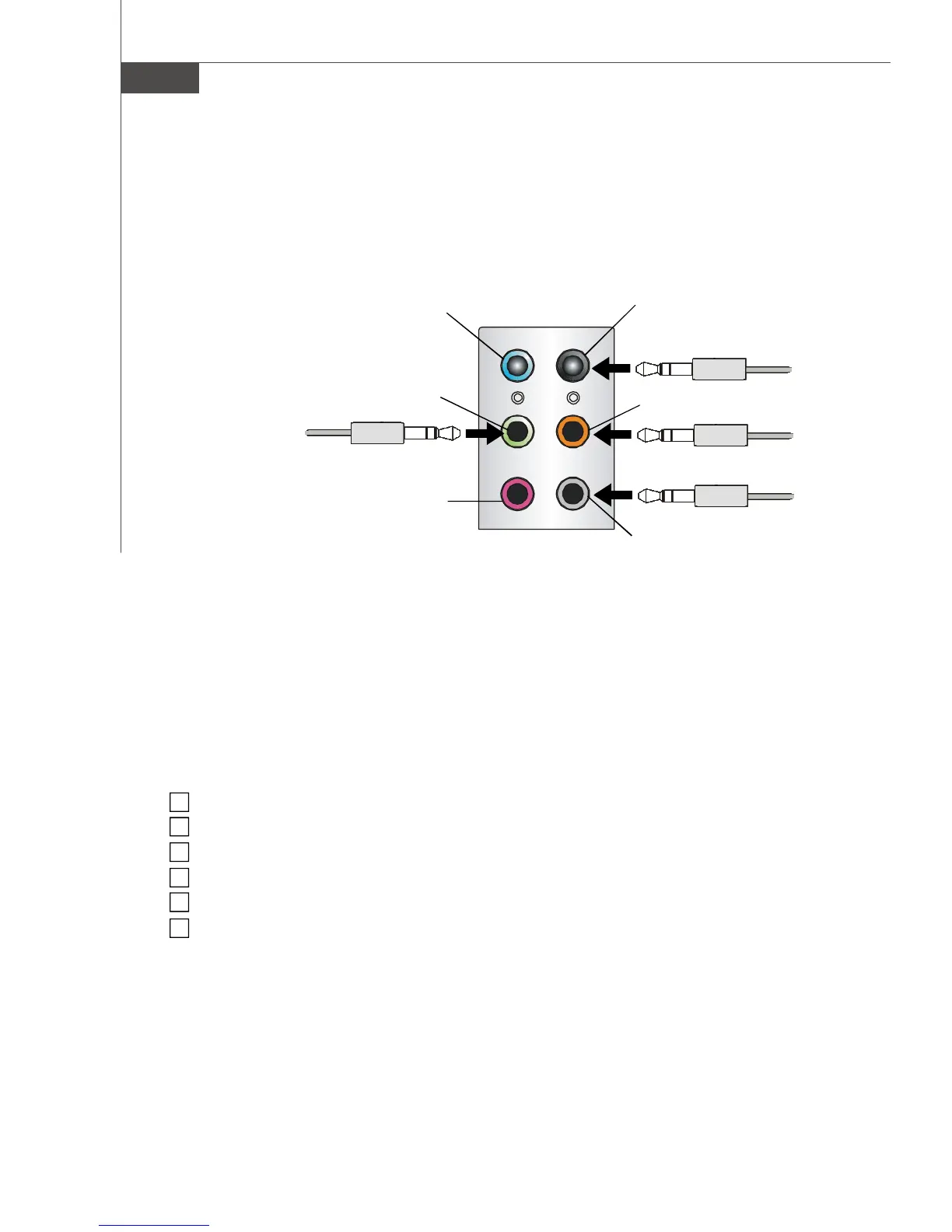

8-Channel Analog Audio Output
1 Line In
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear surround channels)
5 Line Out (Center and Subwoofer channel)
6 Line Out (Side channels)
1
2
6
4
5
3
Back Panel
