MS-7267 Mainboard
3-12

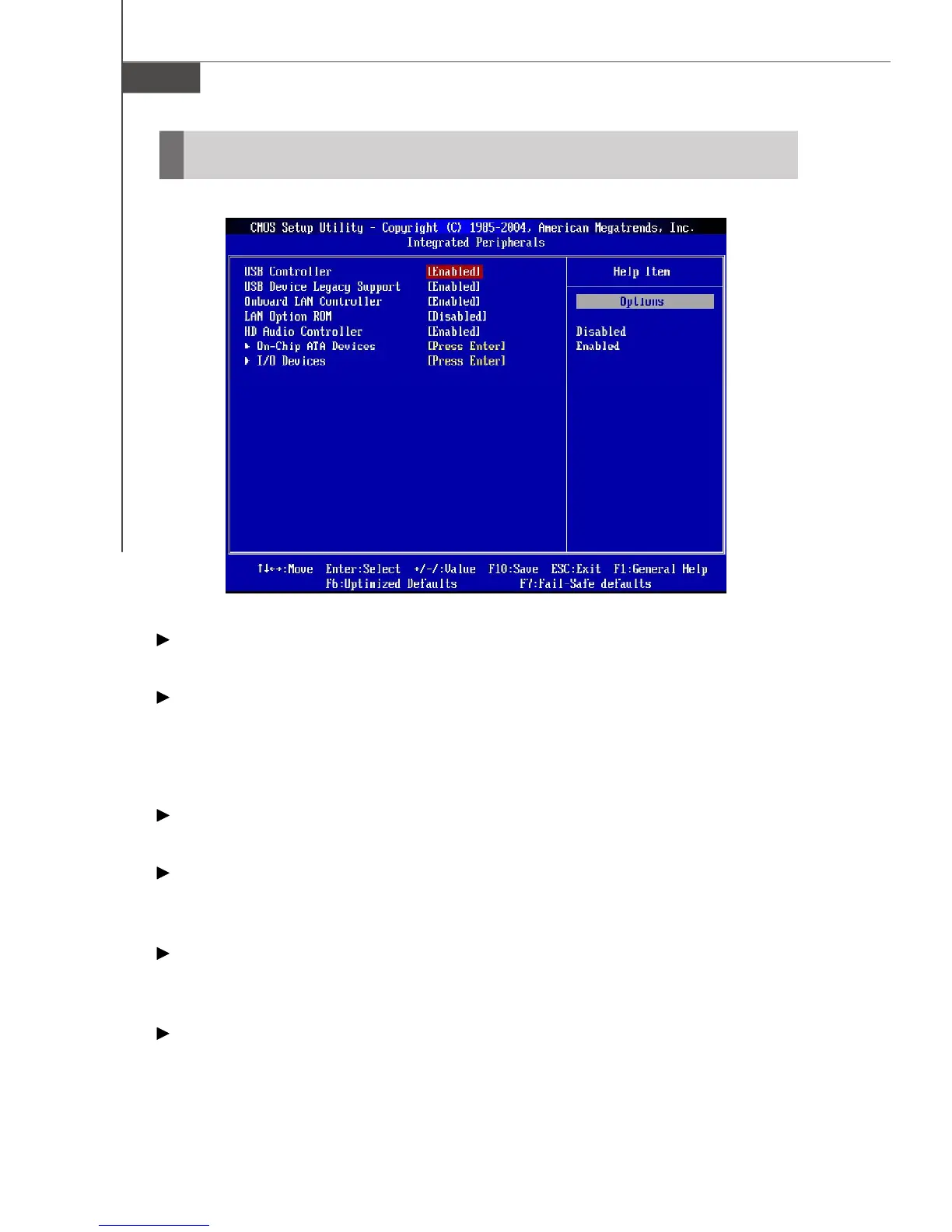

Integrated Peripherals
USB Controller
This setting is used to enable/disable the onboard USB host controller.
USB Device Legacy Support
Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating system
that does not support or have any USB 1.1/2.0 driver installed, such as DOS and SCO
Unix. Set to [Disabled] only if you want to use any USB device other than the USB
mouse.
Onboard LAN Controller
The item enables or disables the onboard LAN controller.
LAN Option ROM
The item enables or disables the initialization of the onboard LAN Boot ROM during
bootup. Selecting [Disabled] will speed up the boot process.
HD Audio Controller
This item is used to enable or disable the onboard Audio Codec controller. Disable the
function if you want to use other controller cards to connect an audio device.
On-Chip ATA Devices
Press <Enter> to enter the sub-menu and the following screen appears:
