Introduction to Realtek ALC880
n 4-Channel Mode for 4-Speaker Output
Description:
Connect two speakers to back
panel’s Line Out connector and
two speakers to the real-chan-
nel Line Out connector.

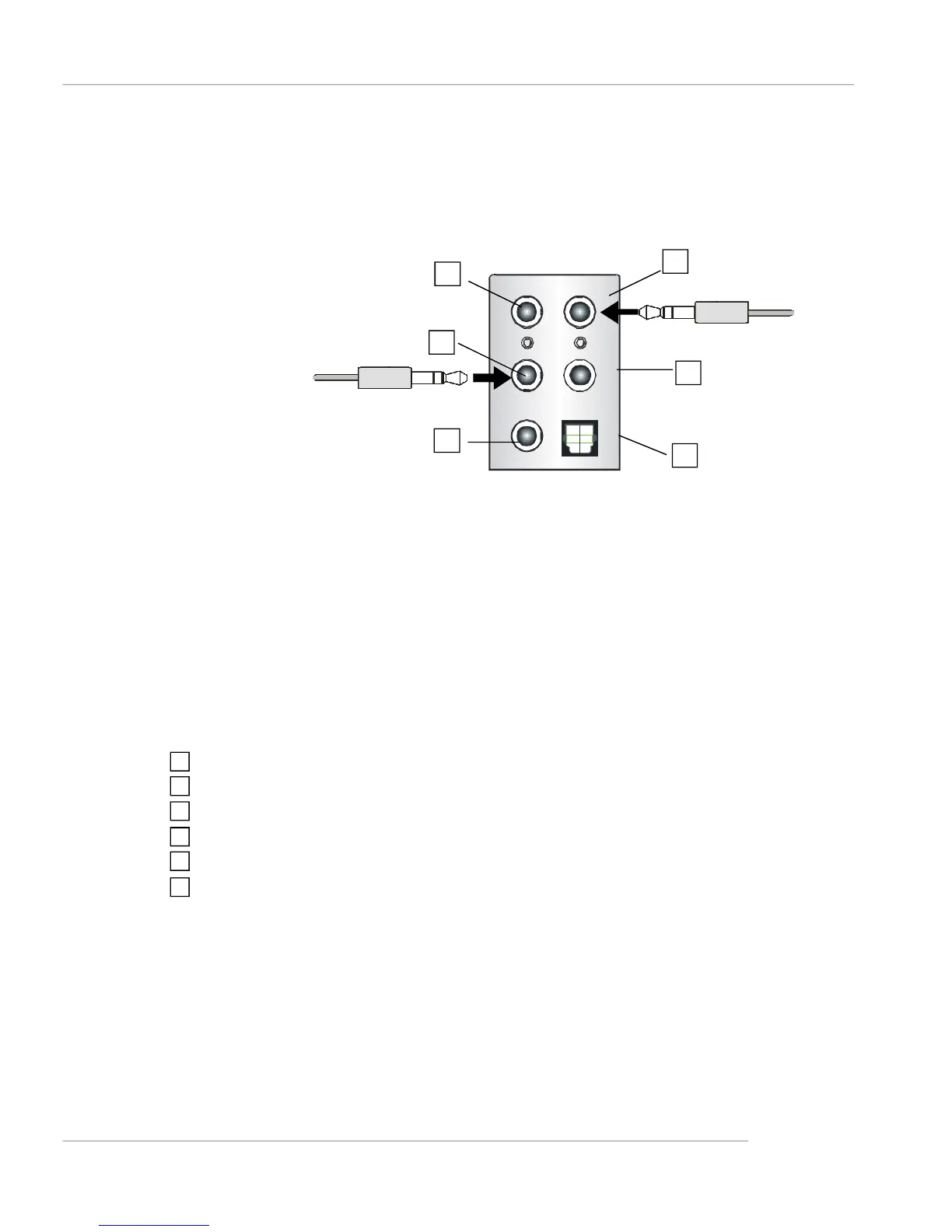

4-Channel Analog Audio Output
Back Panel
1 Line In
2 Line Out (Front channels)
3 MIC
4 Line Out (Rear channels)
5 Line Out (Center and Subwoofer channel, but no functioning in this mode)
6 S/PDIF Out-Optical
3
1
2
6
4
5
