2-14
MS-7210 Micro-ATX Mainboard
The mainboard provides connectors to connect to FDD, IDE HDD, case, LAN,
and USB Ports.

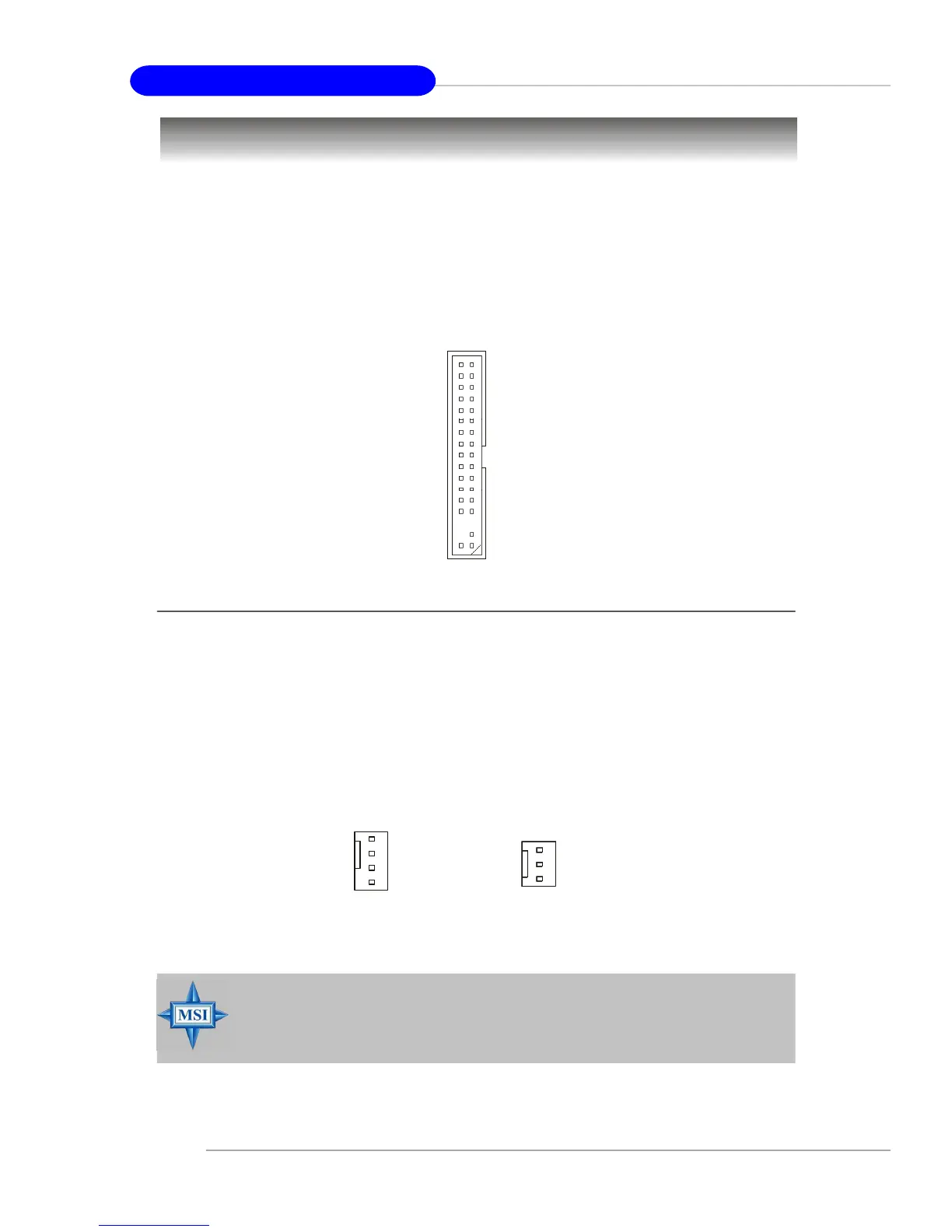

Floppy Disk Drive Connector: FDD1
The mainboard provides a standard floppy disk drive connector that supports
360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
Connectors
FDD1
(black)
Fan Power Connectors: CPU_F2/ SYS_F1
The CPU_F2 (processor fan) and SYS_F1 support system cooling fan with
+12V. It supports four/three-pin head connector. When connecting the wire to the
connectors, always take note that the red wire is the positive and should be con-
nected to the +12V, the black wire is Ground and should be connected to GND. If the
mainboard has a System Hardware Monitor chipset on-board, you must use a spe-
cially designed fan with speed sensor to take advantage of the CPU fan control.
SYS_F1
CPU_F2
SENSOR
+12V
GND
Control
Sensor
+12V
GND
MSI Reminds You...
1.Always consult the vendors for proper CPU cooling fan.
2.Please refer to the recommended CPU fans at Intel
®
official
website.
