3-14
MS-7210 Micro-ATX Mainboard
On-Chip ATA Device

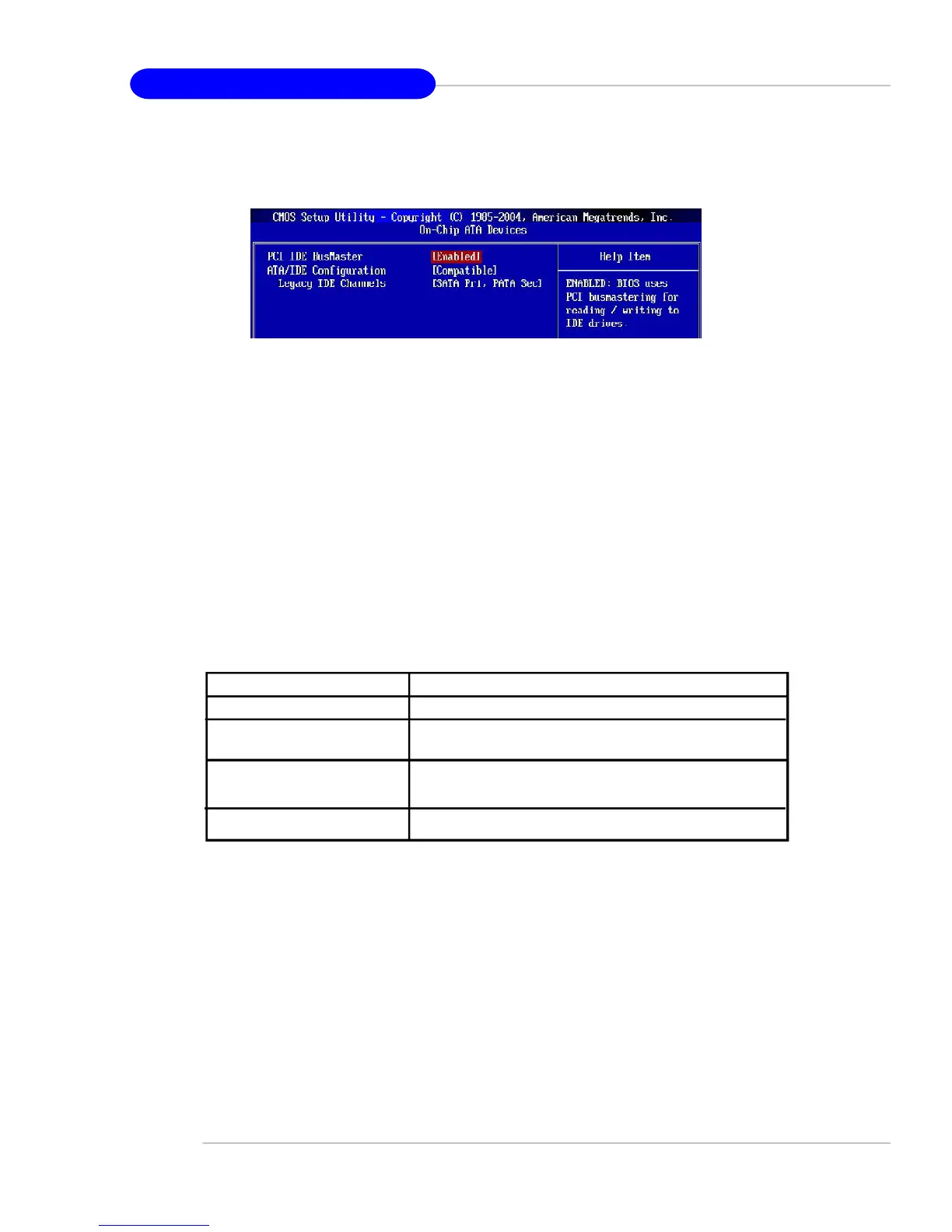

Press <Enter> to enter the sub-menu and the following screen appears:
PCI IDE BusMaster
This item allows you to enable/ disable the PCI IDE busmaster. Setting options:
[Disabled], [Enabled].
ATA/IDE Configuration
This item is used to specify the SATA & IDE devices. The setting options are:
Compatible You can use the IDE channels with the SATA devices and
IDE devices.
Enhanced You can use two IDE devices and all of four SATA devices.
Disabled Disable all IDE and SATA devices.
Legacy IDE Channels
The item will appear when you select “Compatible” mode in the ATA/IDE
Configuration item. You can use the two IDE channels with SATA devices and
IDE devices by your desire. And each channel supports up to 2 devices. Please
refer the table below for detail setting:
Configure SATA as
The item will appear when you select Enhanced mode in the “ATA/IDE Configu-
ration” item. You can set the SATA mode in this item. Setting options are:
RAID configure the SATA devices as RAID mode
AHCI IDE configure the SATA devices as AHCI IDE mode
Setting options Available devices
SATA Only SATA1/2/3/4 devices only
PATA Pri, SATA Sec IDE1/2 by IDE channel 1 & SATA1/2 by IDE
channel 2
SATA Pri, PATA Sec SATA1/2 by IDE channel1 & IDE1/2 by IDE
channel 2
PATA Only IDE devices only
