Overview of Components
SATA1~4: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA1
SATA2
SATA3
SATA4
Important
y Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.

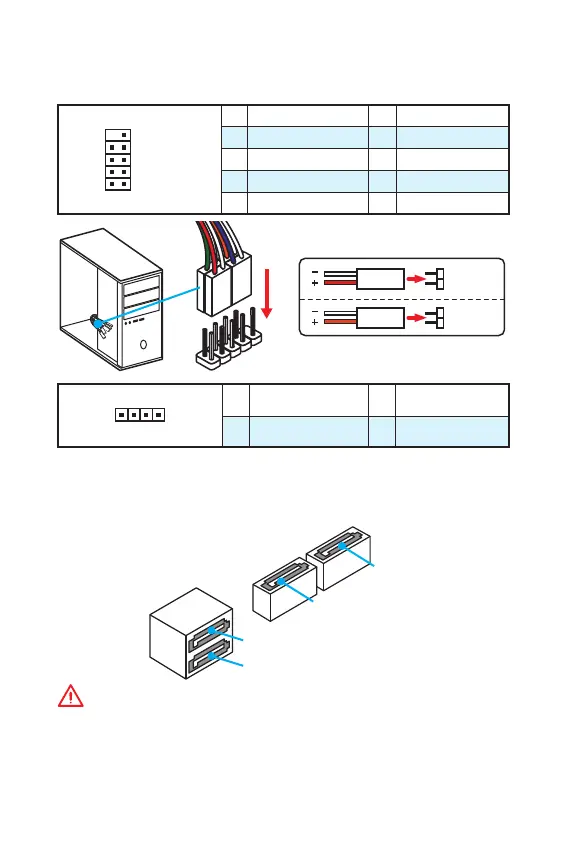

JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
1
2
10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1

MSI A320M GRENADE Specifications

General

Form Factor	Micro ATX
Chipset	AMD A320
CPU Socket	AM4
Memory Slots	2
Maximum Memory	32 GB
LAN	Realtek 8111H Gigabit LAN
Video Output	1 x DVI-D, 1 x HDMI
Memory Speed	2133/ 2400/ 2667/ 2933/ 3200 MHz
Expansion Slots	1 x PCIe 3.0 x16
Storage Interface	4 x SATA 6Gb/s
USB Ports	4 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC887 7.1-Channel High Definition Audio
