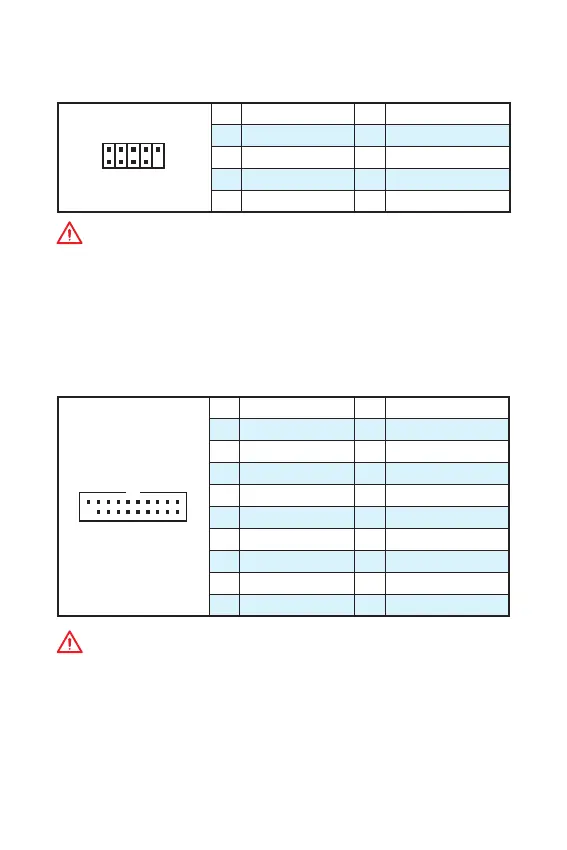

JUSB3: USB 3.1 Gen1
USB 3.1 Gen1󳰙 󶪓
1 10
1120
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 NC 20 No Pin
󴱄󳞱
󹧖󴻢󳖔󳰛󶪔󴦜󳰛󶪔󲛆󱿷󴟆󲏝󳳇󱩫
 
JUSB1~2: USB 2.0
USB 2.0󳰙 󶪓
1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
󴱄󳞱
y VCC󳖔󳰛󶪔󴦜󳰛󶪔󲛆󱿷󴟆󲏝
󳳇󱩫 
y USB iPadiPhoneiPod󱯥󱭮󹧖 MSI
®
SUPER CHARGER
     

MSI A320M GRENADE Specifications

General

Form Factor	Micro ATX
Chipset	AMD A320
CPU Socket	AM4
Memory Slots	2
Maximum Memory	32 GB
LAN	Realtek 8111H Gigabit LAN
Video Output	1 x DVI-D, 1 x HDMI
Memory Speed	2133/ 2400/ 2667/ 2933/ 3200 MHz
Expansion Slots	1 x PCIe 3.0 x16
Storage Interface	4 x SATA 6Gb/s
USB Ports	4 x USB 3.1 Gen1, 6 x USB 2.0
Audio	Realtek ALC887 7.1-Channel High Definition Audio
