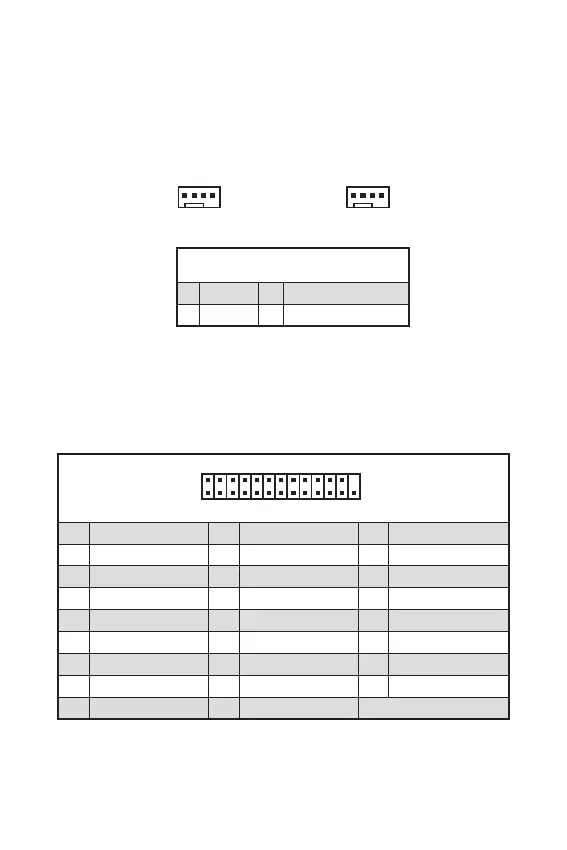

MSI A320M PRO-C - CPU_FAN1, SYS_FAN1~2: Разъемы Вентиляторов; JLPT1: Разъем Параллельного Порта

15
 













1 Ground 2 +12V
3 Sense 4 Speed Control Signal
1
SYS_FAN1~2
1
CPU_FAN1
1
2 26
25
1 RSTB# 2 AFD# 3 PRND0
4 ERR# 5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN# 9 PRND3
10 Ground 11 PRND4 12 Ground
13 PRND5 14 Ground 15 PRND6
16 Ground 17 PRND7 18 Ground
19 ACK# 20 Ground 21 BUSY
22 Ground 23 PE 24 Ground
25 SLCT 26 No Pin



