Overview of Components
SATA1~4: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA1
SATA2
SATA3
SATA4
Important
y Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
y SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.

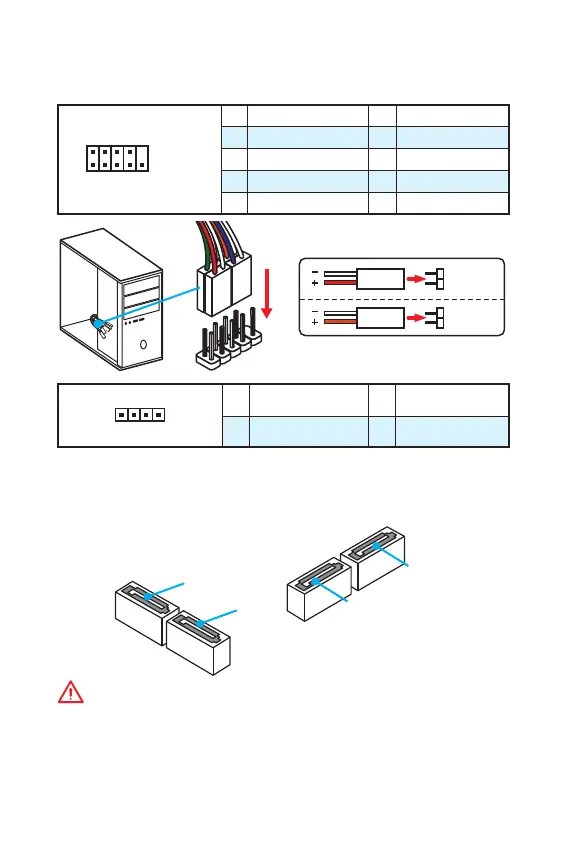

JFP1, JFP2: Front Panel Connectors
These connectors connect to the switches and LEDs on the front panel.
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1

MSI A320M PRO-M2 V2 Specifications

General

Form Factor	Micro-ATX
Chipset	AMD A320
CPU Socket	AM4
Memory Slots	2 x DIMM
Max Memory	32 GB
USB Ports	6
USB 3.2 Gen1 (Rear)	2
USB 2.0 (Rear)	4
USB 3.2 Gen1 (Front)	2
USB 2.0 (Front)	2
Audio	Realtek ALC887
LAN	Realtek 8111H Gigabit LAN
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
Memory Speed	2133/ 2400/ 2667/ 2933/ 3200 MHz
PCIe Slots	1 x PCIe 3.0 x16
SATA Ports	4 x SATA 6Gb/s
M.2 Slots	1 x M.2
