MSI A320M PRO-M2 V2 User Manual

6

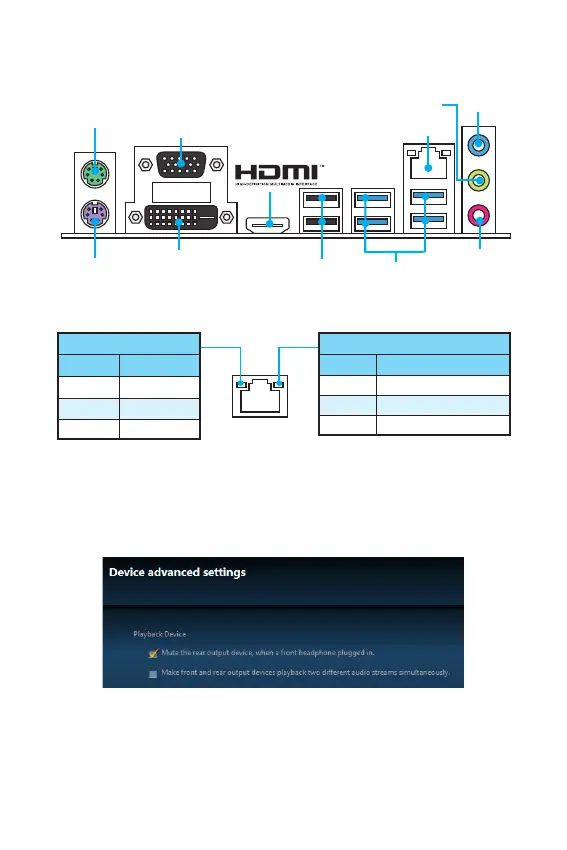

Rear I/O Panel
Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog
below.
2. Select Mute the rear output device, when a front headphone plugged in.
3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device
is current connected.
PS/2 Keyboard
PS/2 Mouse
LAN
USB 3.1 Gen1
USB 2.0
DVI-D
VGA
Line-in
Line-out
Mic in

MSI A320M PRO-M2 V2 Specifications

General

Form Factor	Micro-ATX
Chipset	AMD A320
CPU Socket	AM4
Memory Slots	2 x DIMM
Max Memory	32 GB
USB Ports	6
USB 3.2 Gen1 (Rear)	2
USB 2.0 (Rear)	4
USB 3.2 Gen1 (Front)	2
USB 2.0 (Front)	2
Audio	Realtek ALC887
LAN	Realtek 8111H Gigabit LAN
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
Memory Speed	2133/ 2400/ 2667/ 2933/ 3200 MHz
PCIe Slots	1 x PCIe 3.0 x16
SATA Ports	4 x SATA 6Gb/s
M.2 Slots	1 x M.2
