Overview of Components

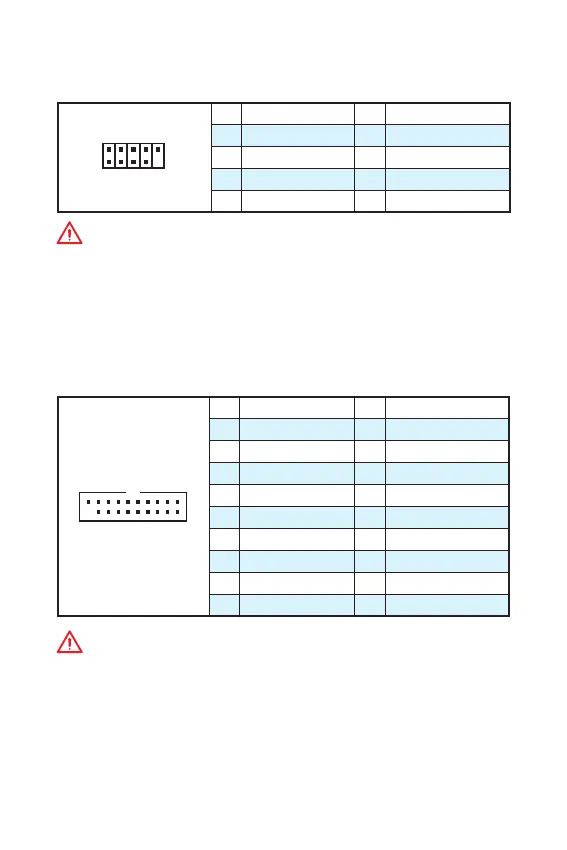

JUSB3: USB 3.1 Gen1 Connector
This connector allows you to connect USB 3.1 Gen1 ports on the front panel.
1 10
1120
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 NC 20 No Pin
Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
JUSB1~2: USB 2.0 Connectors
These connectors allow you to connect USB 2.0 ports on the front panel.
1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
Important
y Note that the VCC and Ground pins must be connected correctly to avoid possible
damage.
y In order to recharge your iPad,iPhone and iPod through USB ports, please install
MSI
®
SUPER CHARGER utility.

MSI A320M PRO-M2 V2 Specifications

General

Form Factor	Micro-ATX
Chipset	AMD A320
CPU Socket	AM4
Memory Slots	2 x DIMM
Max Memory	32 GB
USB Ports	6
USB 3.2 Gen1 (Rear)	2
USB 2.0 (Rear)	4
USB 3.2 Gen1 (Front)	2
USB 2.0 (Front)	2
Audio	Realtek ALC887
LAN	Realtek 8111H Gigabit LAN
Video Outputs	1 x HDMI, 1 x DVI-D, 1 x VGA
Memory Speed	2133/ 2400/ 2667/ 2933/ 3200 MHz
PCIe Slots	1 x PCIe 3.0 x16
SATA Ports	4 x SATA 6Gb/s
M.2 Slots	1 x M.2
