MSI A320M PRO-VD/S User Manual

9
     
SATA1~4:  SATA 6 /
      SATA 6 /. 
      SATA.
SATA4
SATA2
SATA3
SATA1
!
y    SATA   .   ,
    .
y  SATA      .
,       
   .

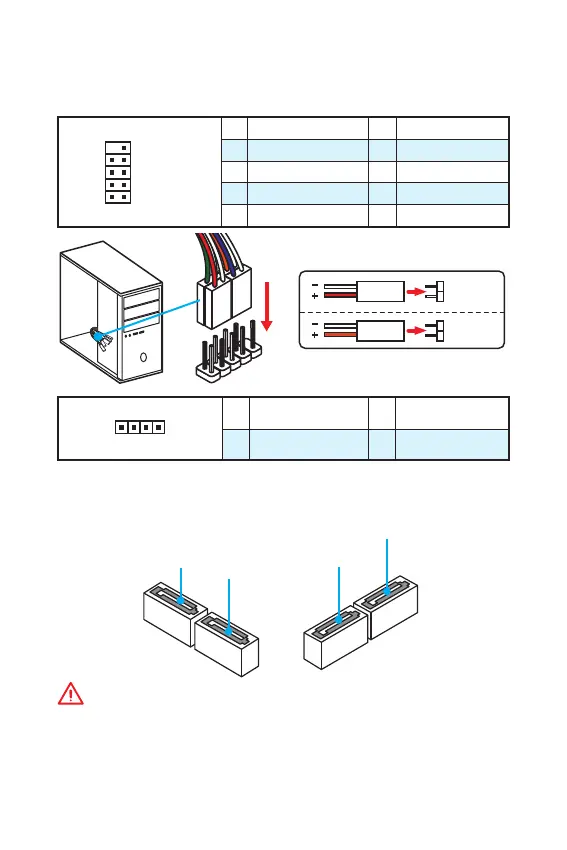

JFP1, JFP2:   
       
,    .
1
2
10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1

MSI A320M PRO-VD/S Specifications

General

Chipset	AMD A320
CPU Socket	AM4
Memory Type	DDR4
Memory Slots	2
Form Factor	Micro ATX
Max Memory	32GB
PCIe x16 Slots	1
SATA Ports	4
Audio	Realtek ALC887
LAN	Realtek 8111H Gigabit LAN
Expansion Slots	2x PCIe x1
USB Ports	6x USB 2.0
Video Outputs	1x VGA
Memory Speed	3200MHz (OC)
M.2 Slot	1
