5
Mining System Installation Guide
Installing Multiple Power Supplies

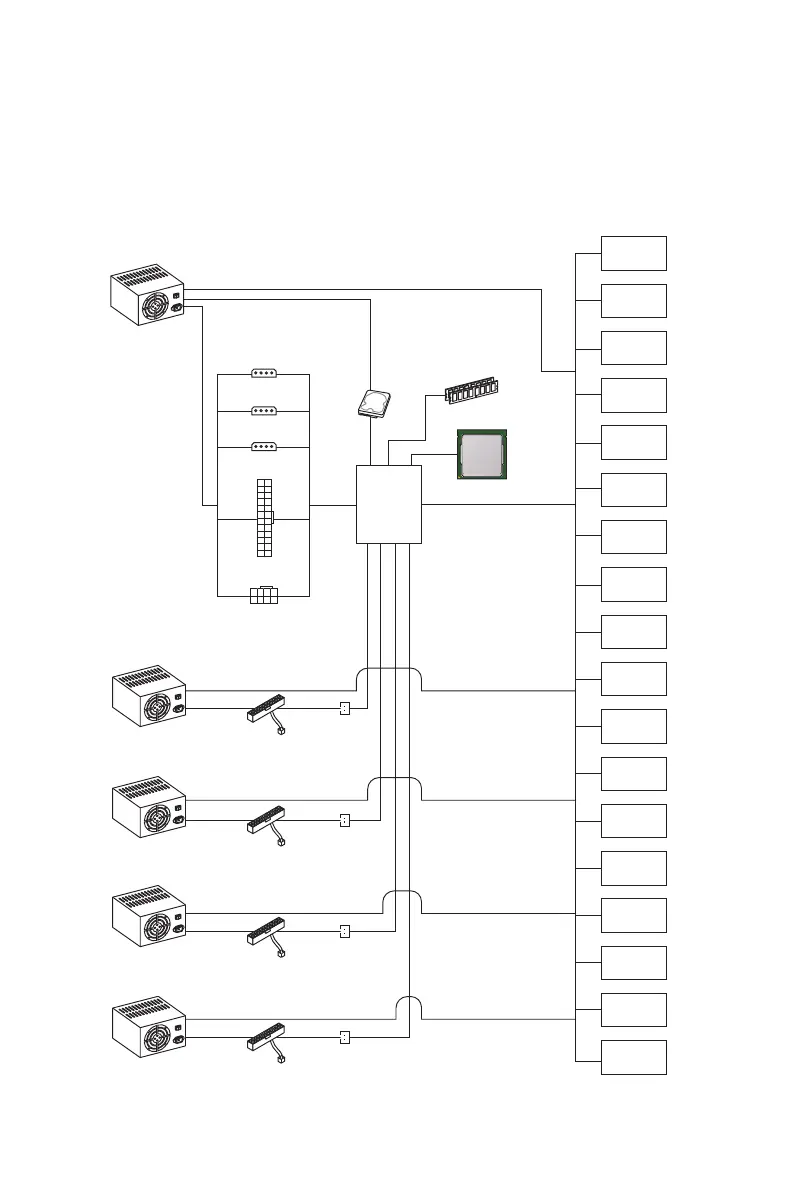

The following diagram shows the installation of multiple power supplies. The main
power supply must be connected to the CPU_PWR1, ATX_PWR1, GPU_PWR1~3, SSDs
and System Fans. Estimate the total wattage required by the graphics card TGP and
install 1 to 4 additional power supplies if necessary. Connect additional power supplies
to the JPS_ONx connectors with a 24-pin to 2-pin adapter, in order to turn on the
additional power supplies when the system is powered on.
PSU1
PSU2
JPS_ON1
PSU3
PSU4
PSU5
GPU_PWR1
GPU_PWR2
GPU_PWR3
ATX_PWR1
CPU_PWR1
JPS_ON2
JPS_ON3
JPS_ON4
MB
dGPU1
dGPU2
dGPU3
dGPU4
dGPU5
dGPU6
dGPU7
dGPU8
dGPU9
dGPU10
dGPU11
dGPU12
dGPU13
dGPU14
dGPU15
dGPU16
dGPU17
dGPU18
CPU
Memory
SSD
24-pin to 2-pin
adapter
24-pin to 2-pin
adapter
24-pin to 2-pin
adapter
24-pin to 2-pin
adapter
To Next Page
