Overview of Components
Important
y Intel
®
RST only supports PCIe M.2 SSD with UEFI ROM.
y Intel
®
Optane
TM
Memory Ready.
M2_1: M.2 Slot (Key M)
Video Demonstration
Watch the video to learn how to Install M.2
SSD.
http://youtu.be/JCTFABytrYA
1
2
3
30°

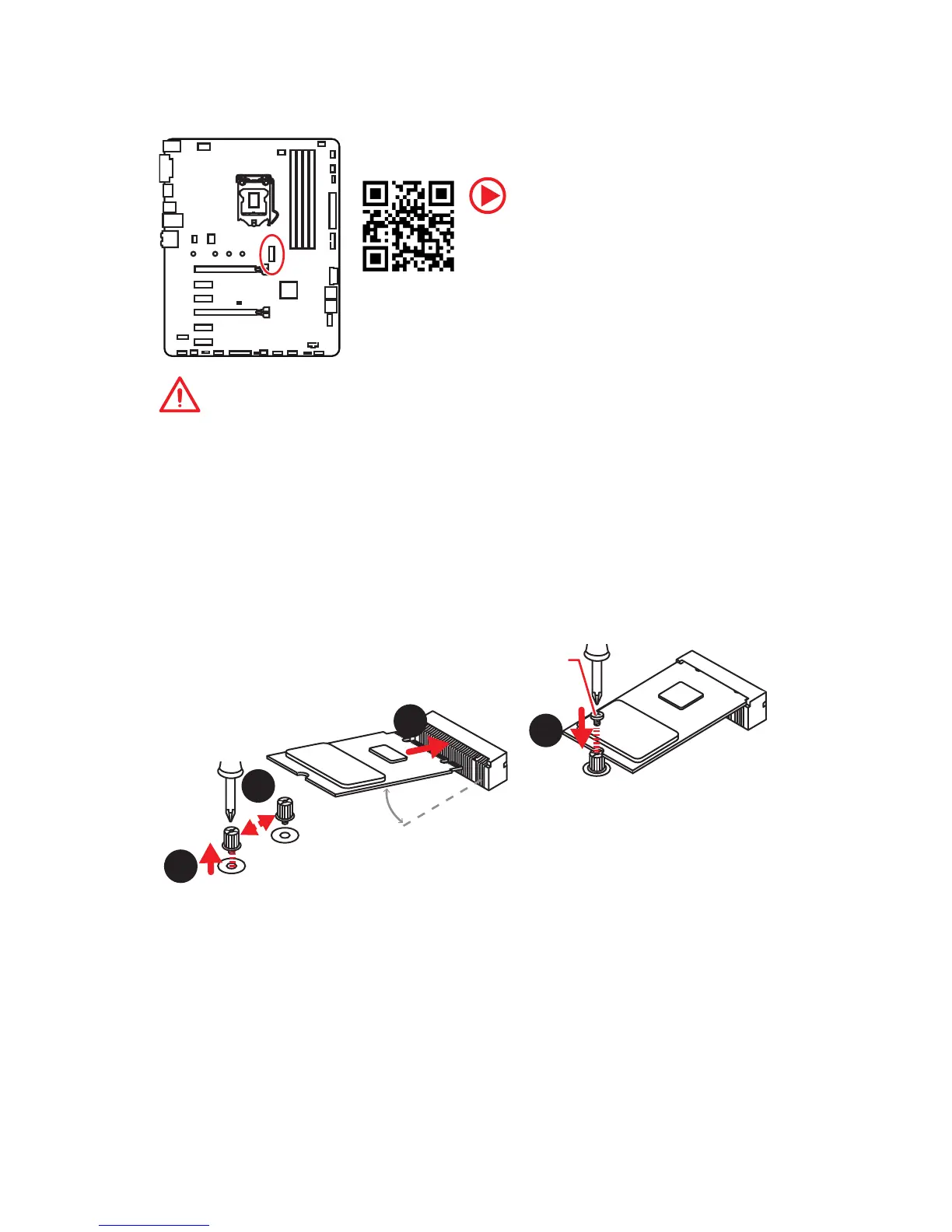

Installing M.2 SSD
1. Loosen the M.2 riser screw from the
motherboard.
2. Move and fasten the M.2 riser screw to
the appropriate location for your M.2
SSD.
3. Insert your M.2 SSD into the M.2
slot at a 30-degree angle.
4. Secure the M.2 SSD in place with
the supplied M.2 screw.
4
Supplied
M.2 screw
