Overview of Components
1
2 26
25
1 RSTB# 2 AFD# 3 PRND0
4 ERR# 5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN# 9 PRND3
10 Ground 11 PRND4 12 Ground
13 PRND5 14 Ground 15 PRND6
16 Ground 17 PRND7 18 Ground
19 ACK# 20 Ground 21 BUSY
22 Ground 23 PE 24 Ground
25 SLCT 26 No Pin

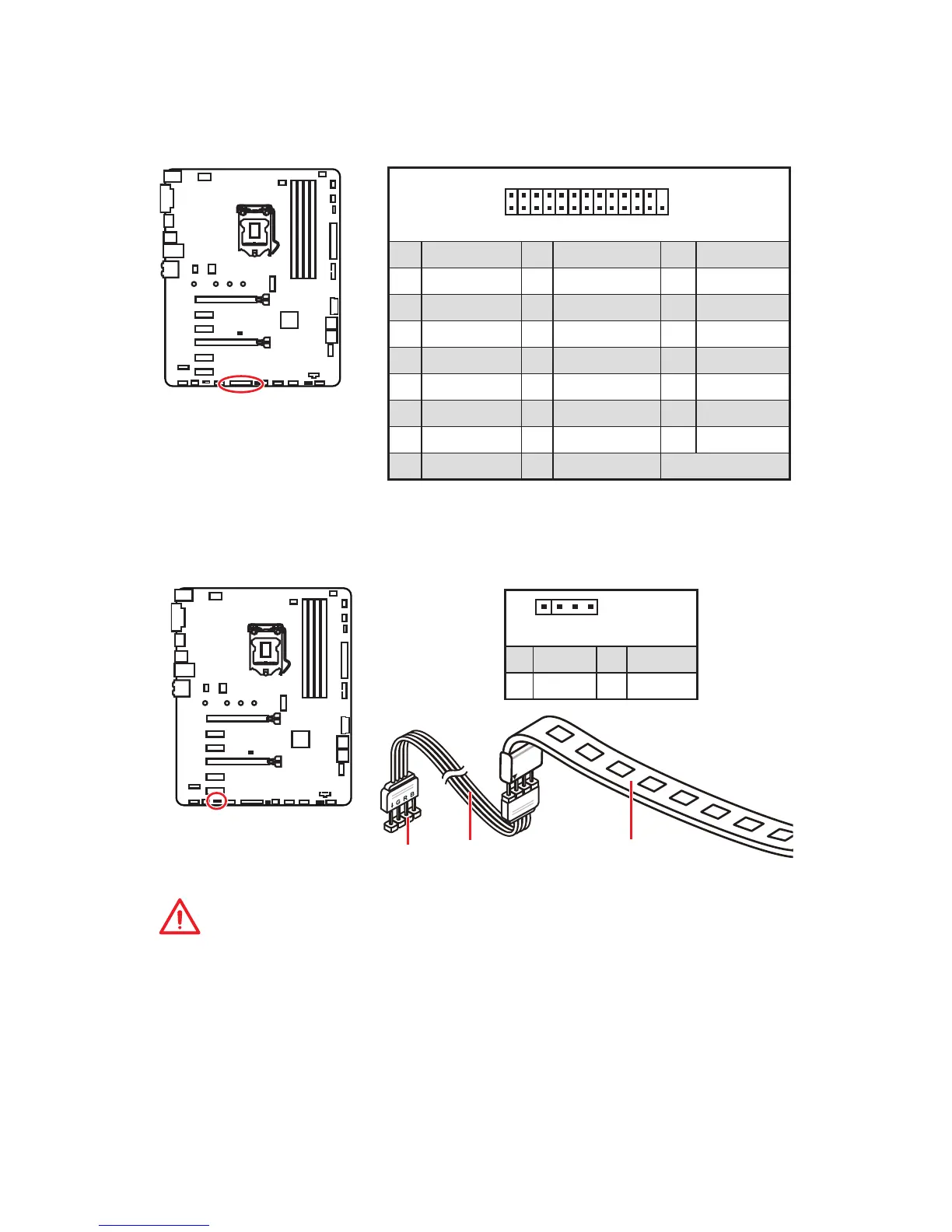

JLPT1: Parallel Port Connector
This connector allows you to connect the optional parallel port with bracket.
JRGB1: RGB LED connectors
The JRGB1 connector allows you to connect the 5050 RGB LED strips 12V.
Important
y
The JRGB1 connector supports 5050 RGB LED strips (12V/G/R/B) with the maximum
power rating of 3A (12V).
y
Please keeping the LED strip shorter than 2 meters to prevent dimming.
y
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
y
Please use MSI’s software to control the extended LED strip.
1
JRGB1
Extension cable
5050 RGB LED strips 12V
1
JRGB1
1 +12V 2 G
3 R 4 B
To Next Page
