MSI B365M PRO-VD User Manual

7
   /    

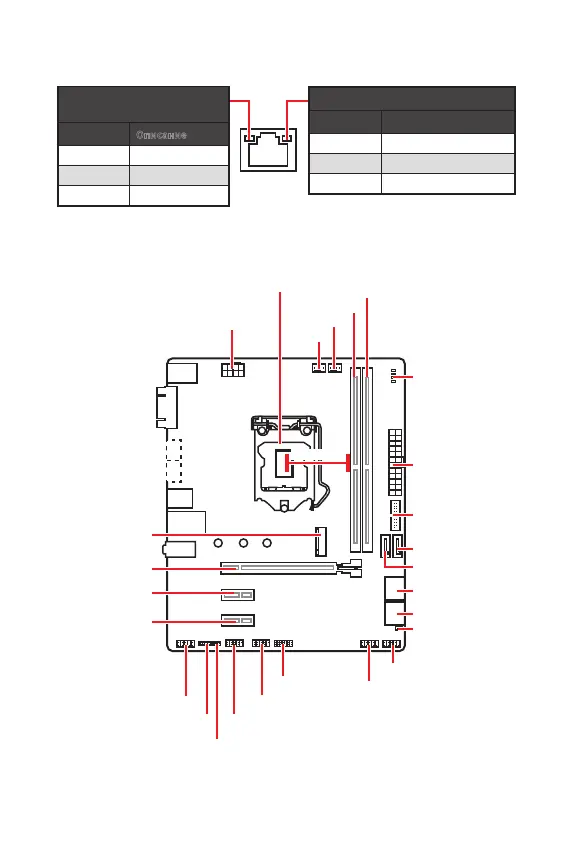

    LAN
  
CPU_FAN1
ATX_PWR1
EZ Debug LED
PCI_E1
SYS_FAN1
PCI_E2
PCI_E3
JCI1
DIMMA1
DIMMB1
SATA1
SATA2
JBAT1
JFP1
JFP2
CPU_PWR1
JUSB2
JUSB1
JTPM1
JUSB3
JCOM1
JAUD1
SATA34
SATA56
*        DIMM.
50.83*
/ 

 
.  
 
  
  
 
. 10 / 
 100 / 
 1 / 


M2_1
(B365M PRO-VD,
B365M PRO-VH)

MSI B365M PRO-VD Specifications

General

Form Factor	Micro-ATX
Chipset	Intel B365
CPU Socket	LGA 1151
Memory Slots	2
Maximum Memory	32 GB
Memory Type	DDR4
Memory Speed	2666/ 2400/ 2133 MHz
SATA 6Gb/s Ports	6
M.2 Slots	1
Audio	Realtek ALC887
LAN	Realtek 8111H Gigabit LAN
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
USB 3.1 Gen1 Ports	4
USB 2.0 Ports	6
Video Outputs	HDMI, VGA
