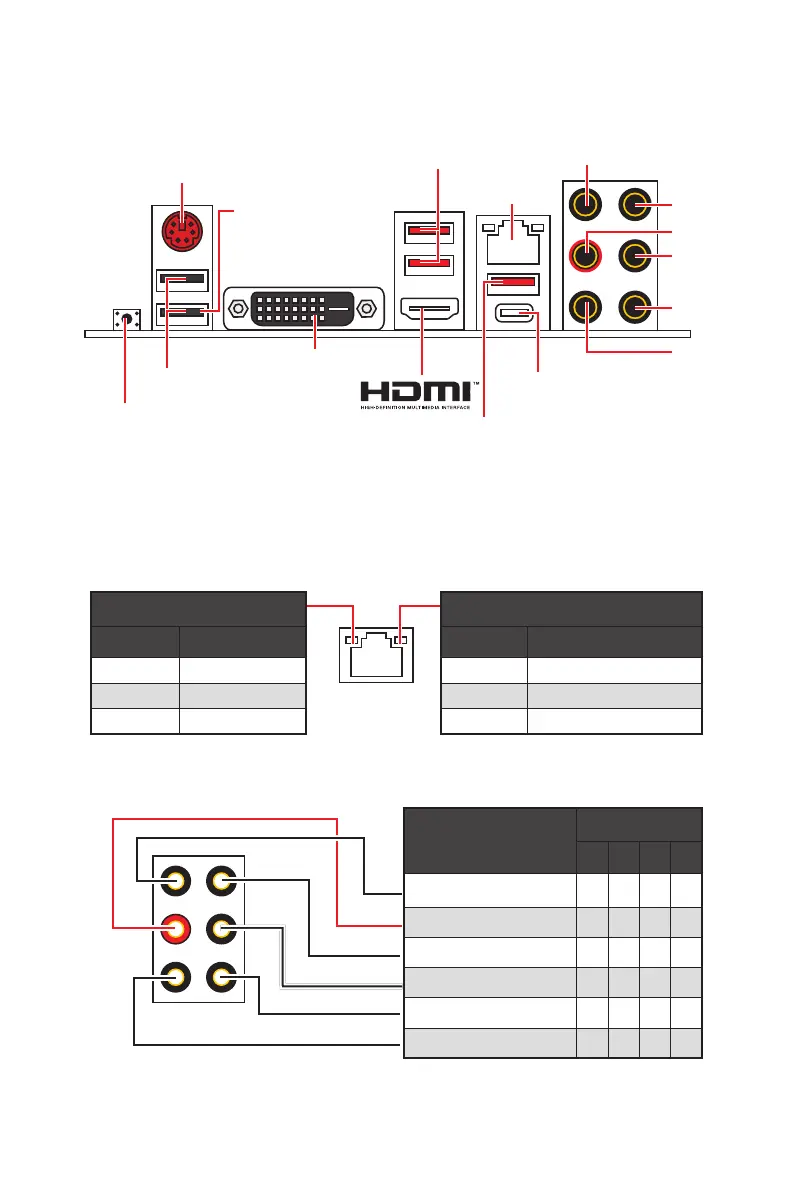

Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Audio Ports Configuration
Audio Ports
Channel
2 4 6 8
Line-In
Line-Out/ Front Speaker Out    
Rear Speaker Out   
  
Side Speaker Out 
Mic In
Blank: empty)
Rear I/O Panel
 Flash BIOS Port/ Button - Please refer to page 29 for Updating BIOS with Flash BIOS
Button.
Line-In
USB 3.2 Gen 2


LAN Port
USB 2.0 Type-A
DVI-D Port
USB 3.2 Gen 1
(5Gbps) Type-A
USB 3.2 Gen 2
(10Gbps) Type-A
Flash BIOS Button
Flash BIOS Port
Mic-In
Line-Out
RS-Out

SS-Out

MSI B450 TOMAHAWK MAX II Specifications

General

Chipset	AMD B450
CPU Socket	AM4
Form Factor	ATX
Memory Slots	4 x DIMM
Maximum Memory	128 GB
LAN	Realtek 8111H Gigabit LAN
RAID Support	RAID 0, 1, 10
PCIe Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 3 x PCIe 2.0 x1
Storage	6 x SATA 6Gb/s, 1 x M.2
USB Ports	6 x USB 2.0
Audio	Realtek ALC892
Multi-GPU Support	AMD CrossFire
Memory Speed	DDR4-4133 (OC)
