33
UEFI BIOS

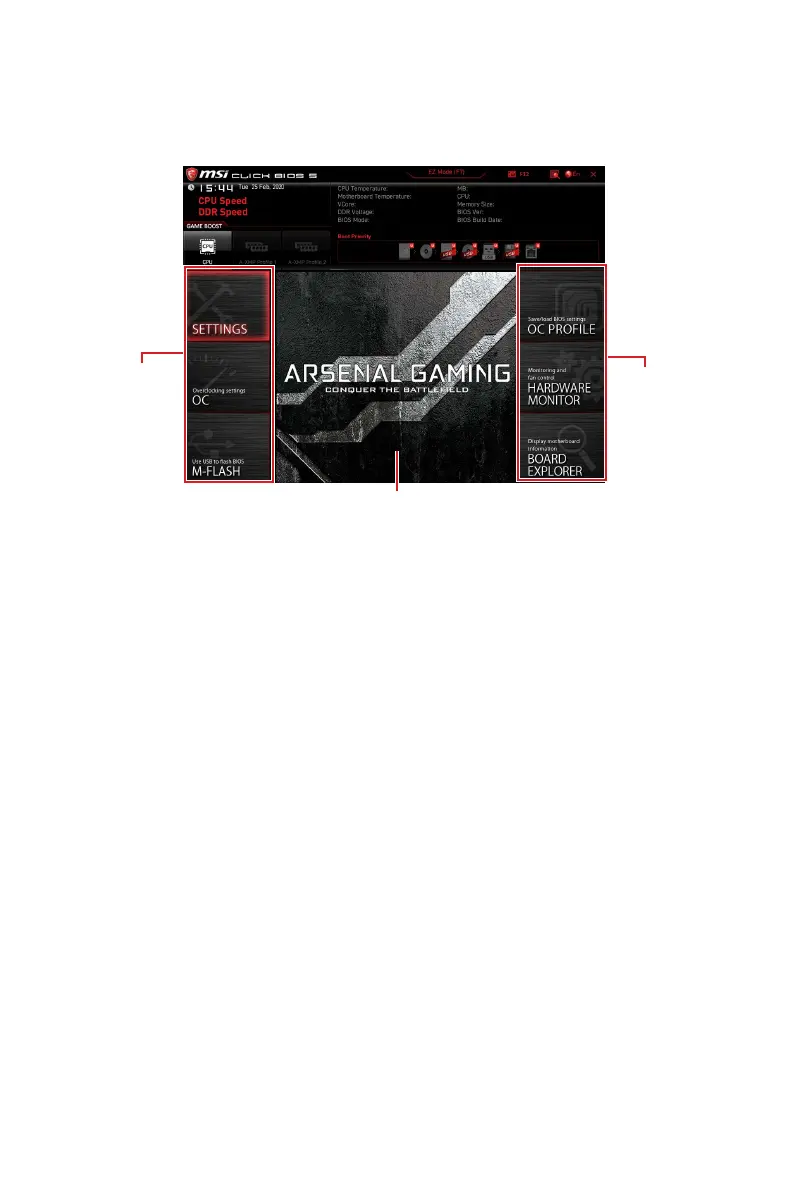

Advanced Mode
Press Setup Mode switch or F7 function key can switch between EZ Mode and
Advanced Mode in BIOS setup.
BIOS menu
selection
Menu display
BIOS menu
selection
BIOS menu selection - the following options are available:
SETTINGS - allows you to specify the parameters for chipset and boot devices.
OC - allows you to adjust the frequency and voltage. Increasing the frequency
may get better performance.
M-FLASH - provides the way to update BIOS with a USB flash drive.
OC PROFILE - allows you to manage overclocking profiles.
HARDWARE MONITOR - allows you to set the speeds of fans and monitor
voltages of system.
BOARD EXPLORER - provides the information of installed devices on this
motherboard.
Menu display - provides BIOS setting items and information to be configured.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI B450 TOMAHAWK MAX II and is the answer not in the manual?

MSI B450 TOMAHAWK MAX II Specifications

General IconGeneral
ChipsetAMD B450
CPU SocketAM4
Form FactorATX
Memory Slots4 x DIMM
Maximum Memory128 GB
LANRealtek 8111H Gigabit LAN
RAID SupportRAID 0, 1, 10
PCIe Slots1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 3 x PCIe 2.0 x1
Storage6 x SATA 6Gb/s, 1 x M.2
USB Ports6 x USB 2.0
AudioRealtek ALC892
Multi-GPU SupportAMD CrossFire
Memory SpeedDDR4-4133 (OC)
