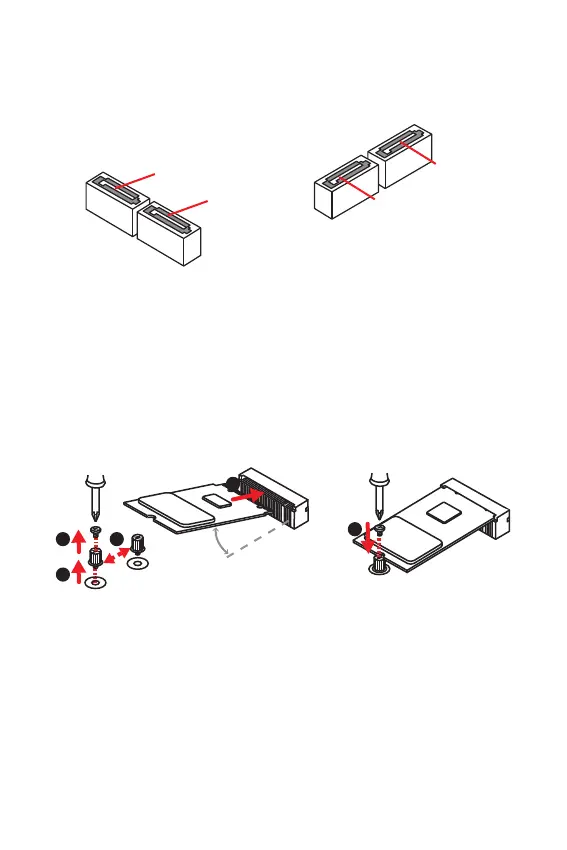

Please install the M.2 solid-state drive (SSD) into the M.2 slot as shown below.
1
2
3
4
5
30°
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA1
SATA2
SATA3
SATA4
Please do not fold the SATA cable at a 90-degree angle. Data loss may result
during transmission otherwise.
SATA cables have identical plugs on either sides of the cable. However, it is
saving purposes.
