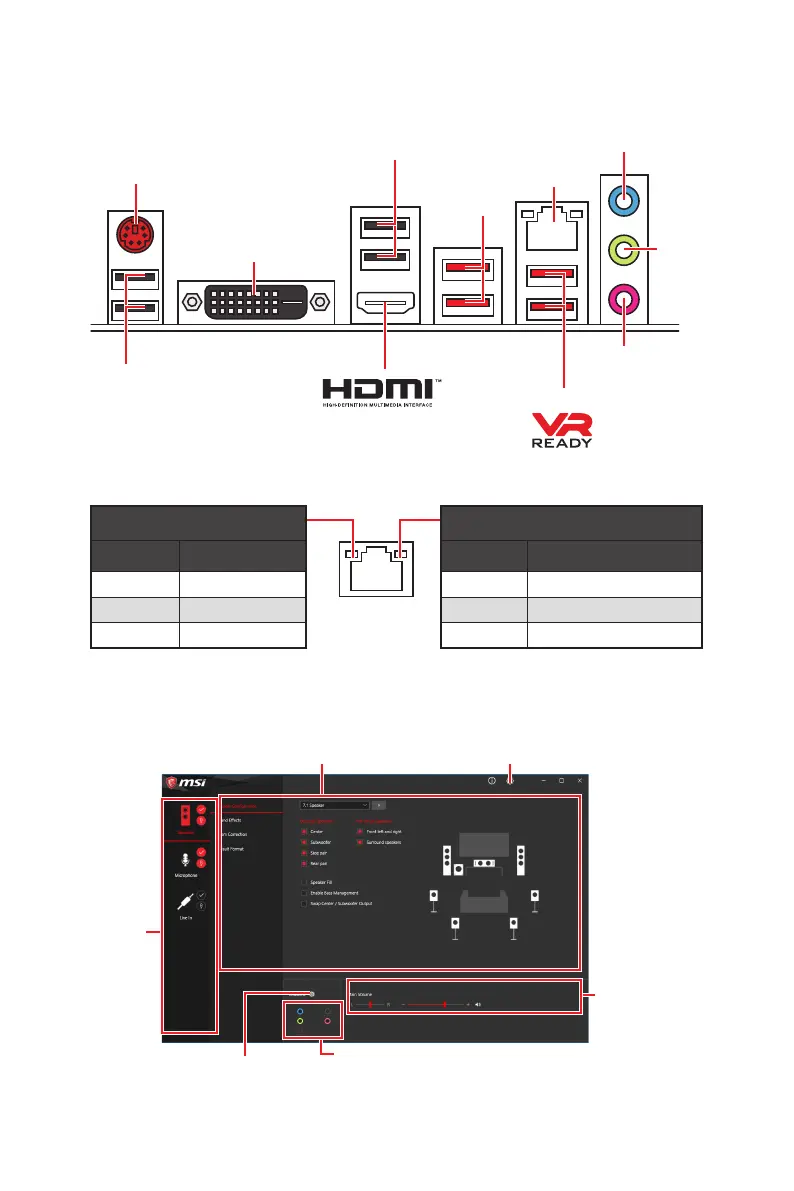

Rear I/O Panel
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
LAN Port LED Status Table
Rear I/O Panel
PS/2
LAN
USB 2.0 Type-A
USB 2.0 Type-A
Mic-In
Line-Out
Line-In
DVI-D
USB 3.1 Gen1 Type-A
USB 3.1 Gen1
Type-A
Realtek Audio Console
After Realtek Audio Console is installed. You can use it to change sound settings to get
better sound experience.
Jack Status
Connector Settings
Device
Selection
Main Volume
Application Enhancement Advanced Settings
