5
Quick Start

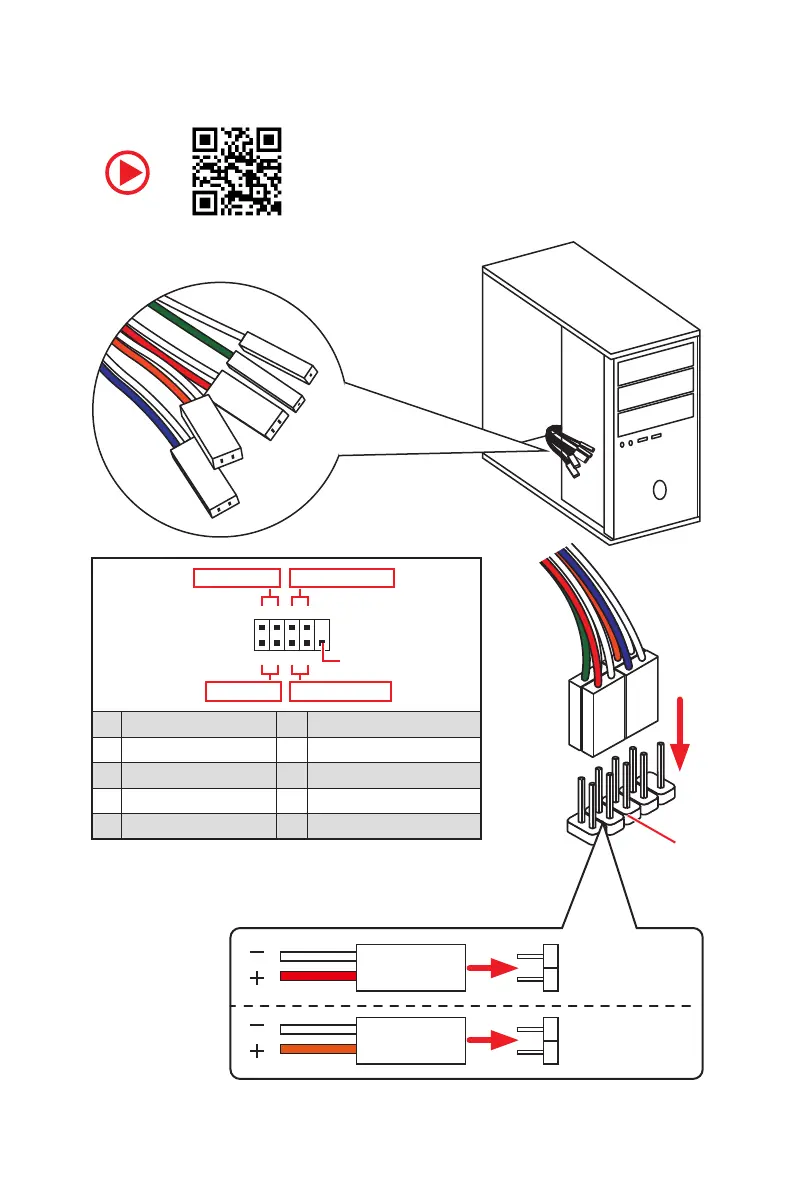

Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
1
2 10
9
+
+
+-
--
-
+
Power LED
HDD LED Reset Switch
Reserved
Power Switch
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI B450M BAZOOKA V2 and is the answer not in the manual?

MSI B450M BAZOOKA V2 Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetAMD B450
SocketAM4
Memory Slots4 x DIMM
Max Memory64 GB
SATA Ports4 x SATA 6Gb/s
M.2 Slots1 x M.2 (Key M)
Video OutputsDVI-D, HDMI
AudioRealtek ALC892
LANRealtek 8111H Gigabit LAN
USB 3.1 Gen1 Type-C0
