37

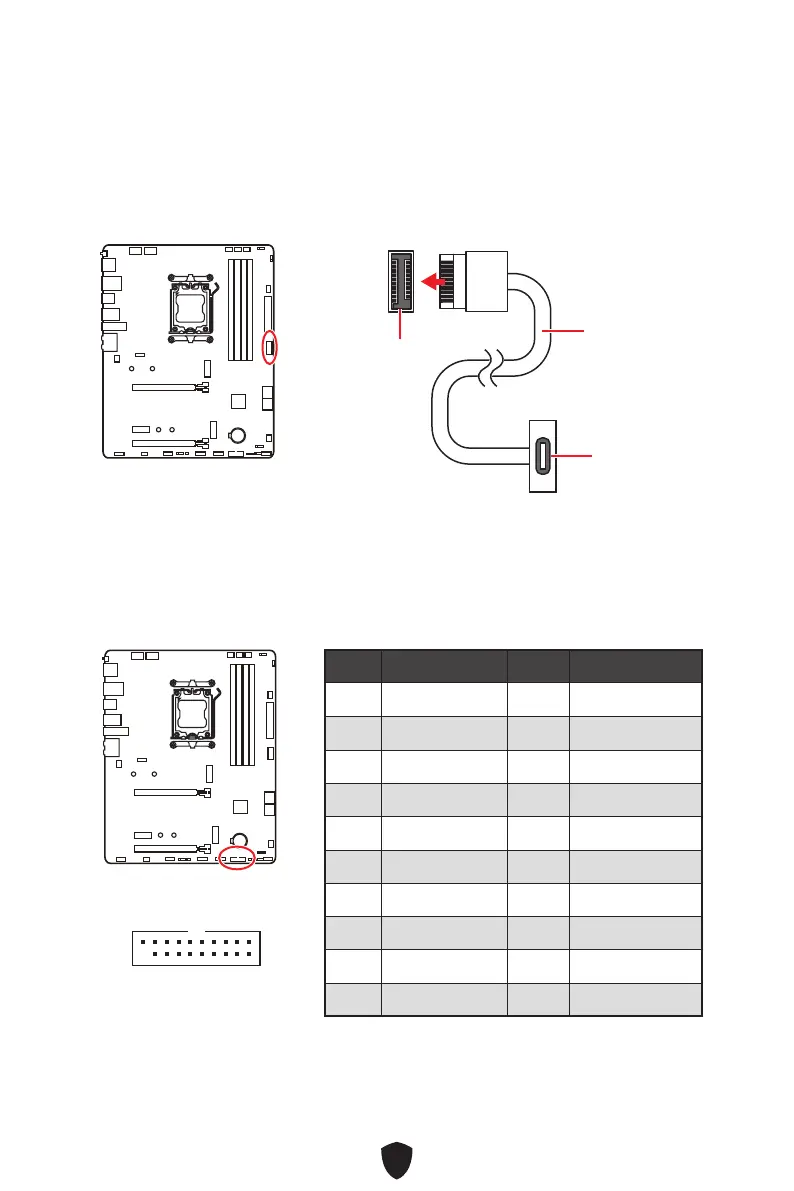

JUSB2 : Connecteur USB 3.2 Gen 1
Ce connecteur vous permet de connecter le port USB 3.2 Gen 1 5 Gb/s sur le panneau
avant.
Important
Notez que les câbles d’alimentation et de terre doivent être branchés correctement
pour éviter d’endommager la carte mère.
Broche Nom de signal Broche Nom de signal
1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1 10
1120
JUSB1 : Connecteur USB 3.2 Gen 2 10 Gb/s Type-C du
panneau avant
Ce connecteur vous permet de connecter le connecteur USB Type-C sur le panneau
avant. Pour plus de sécurité, ce connecteur a été conçu pour offrir une excellente
robustesse. Quand vous connectez le câble, assurez-vous de le brancher dans le bon
sens.
JUSB1
Câble USB Type-C
Port USB Type-C
sur le panneau
avant
