MSI B650 GAMING PLUS WIFI User Manual

31

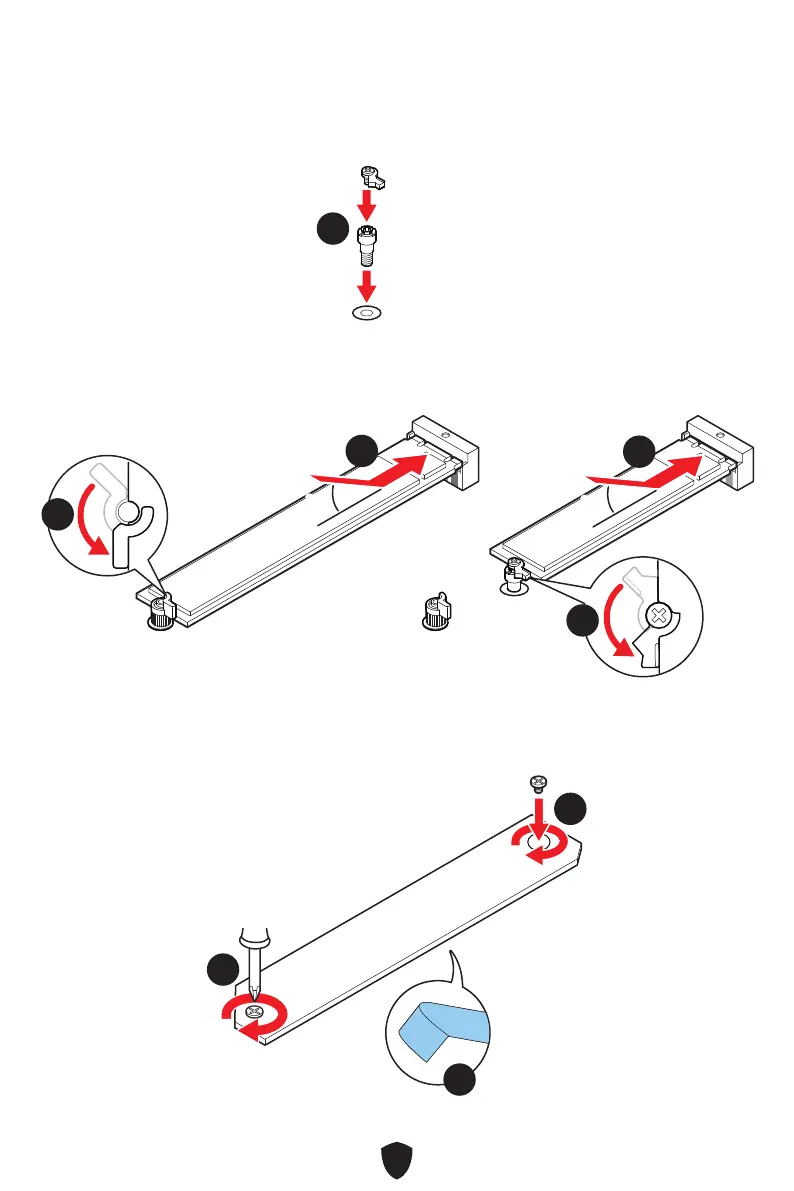

3. Install the supplied EZ M.2 Clip kit in the M.2 hole according to 2280 SSD length.
Skip this step, if you install 22110 SSD.
30º30º
33
4. Insert your M.2 SSD into the M.2 slot at a 30-degree angle.
5. Rotate the EZ M.2 Clip to fix the M.2 SSD.
30º30º
30º30º
55
55
44
44
6. Remove the protective film from the thermal pad under the M.2 Shield Frozr
heatsink.
7. Put the M.2 Shield Frozr heatsink back in place and secure it.
77
77
66

MSI B650 GAMING PLUS WIFI Specifications

General

Chipset	AMD B650
Form Factor	ATX
Memory Slots	4
Max Memory	128 GB
CPU Socket	AM5
SATA Ports	4
Bluetooth	Bluetooth 5.2
Memory Speed	DDR5-6400+ (OC)
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
USB Ports	4 x USB 2.0
Networking	Wi-Fi 6E, 2.5G LAN
Audio	Realtek ALC897
RGB Support	Mystic Light RGB
