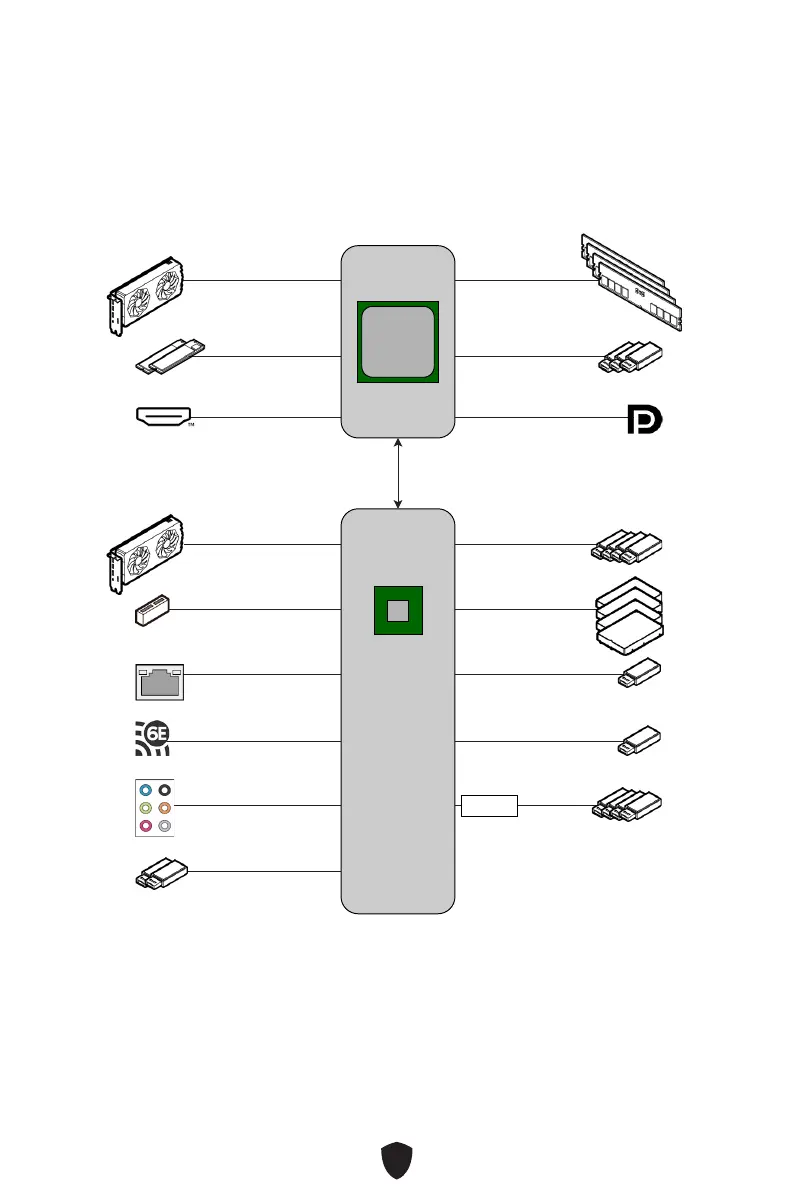

Block Diagram
B650 GAMING PLUS WIFI
PCIe 4.0x4 PCI_E3
USB3.2 Gen2x2 20Gbps
(Rear Type-C)
ASM1074
CHIPSET
HD Audio
ALC897
USB3.2 Gen1 5Gbps
(Front Type-A)
CPU
PCIE x4
PCIe 3.0x1 PCI_E2
USB2.0
(Type-A)
USB3.2 Gen2 10Gbps
(Front Type-C)
USB3.2 Gen1 5Gbps
(Rear Type-A)
SATA_1_2
SATA_3_4
Realtek 8125B
2.5Gbps LAN
WiFi 6E
PCIe 4.0x16 PCI_E1
DDR5
DIMM A1/A2
DIMM B1/B2
GEN4 x4 M.2_1/M_2
(PCIe Only)
USB3.2 Gen2 10Gbps
(Rear Type-A)
HDMI™ 2.1
(4K @60Hz)
DP 1.4
(4K @60Hz)

MSI B650 GAMING PLUS WIFI Specifications

General

Chipset	AMD B650
Form Factor	ATX
Memory Slots	4
Max Memory	128 GB
CPU Socket	AM5
SATA Ports	4
Bluetooth	Bluetooth 5.2
Memory Speed	DDR5-6400+ (OC)
PCIe Slots	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
USB Ports	4 x USB 2.0
Networking	Wi-Fi 6E, 2.5G LAN
Audio	Realtek ALC897
RGB Support	Mystic Light RGB
