MSI B75A-G43 series User Manual

En-15
Englsh

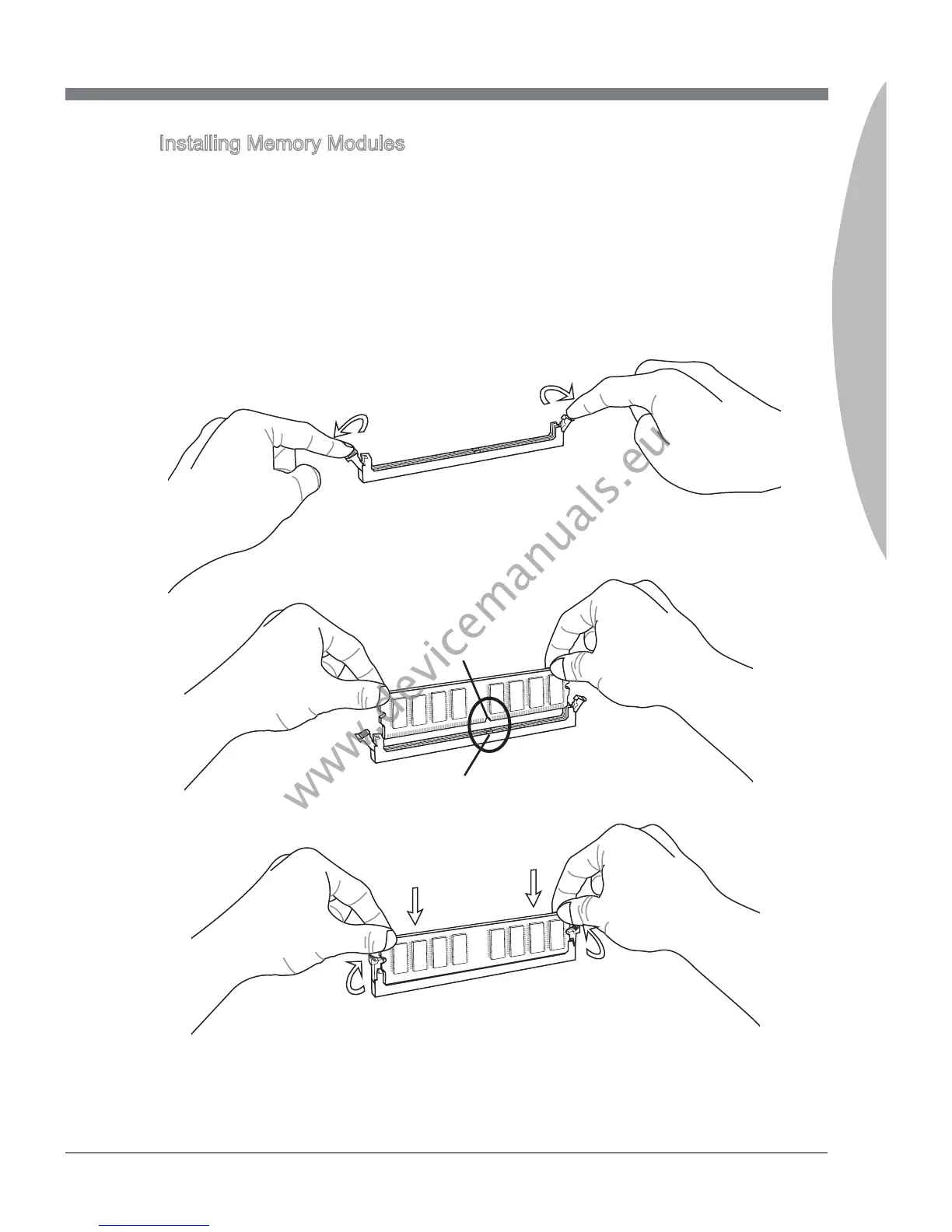

Installng Memory Modules
Unlock the DIMM slot by pushng the mountng clps to the sde. Vertcally nsert the
memory module nto the DIMM slot. The memory module has an o󰘯-center notch on
the bottom that wll only allow t to 󰘰t one way nto the DIMM slot.
Push the memory module deep nto the DIMM slot. The plastc clps at each sde
of the DIMM slot wll automatcally close when the memory module s properly seat
and an audble clck should be heard.
Manually check f the memory module has been locked n place by the DIMM slot’s
sde clps.
1.
2.
3.
Notch
Volt
www.devicemanuals.eu

MSI B75A-G43 series Specifications

General

Chipset	Intel B75
Form Factor	ATX
Socket	LGA 1155
Memory Slots	4
Maximum Memory	32 GB
PCI Express x16	1
PCI Express x1	2
SATA 3Gb/s	4
SATA 6Gb/s	1
Audio	Realtek ALC892
RAID Support	Yes
LAN	Realtek RTL8111E
USB 3.0	2 (rear), 2 (front)
USB 2.0	8 (4 rear, 4 via headers)
