MSI B760M BOMBER DDR4 User Manual

34





 

 

   

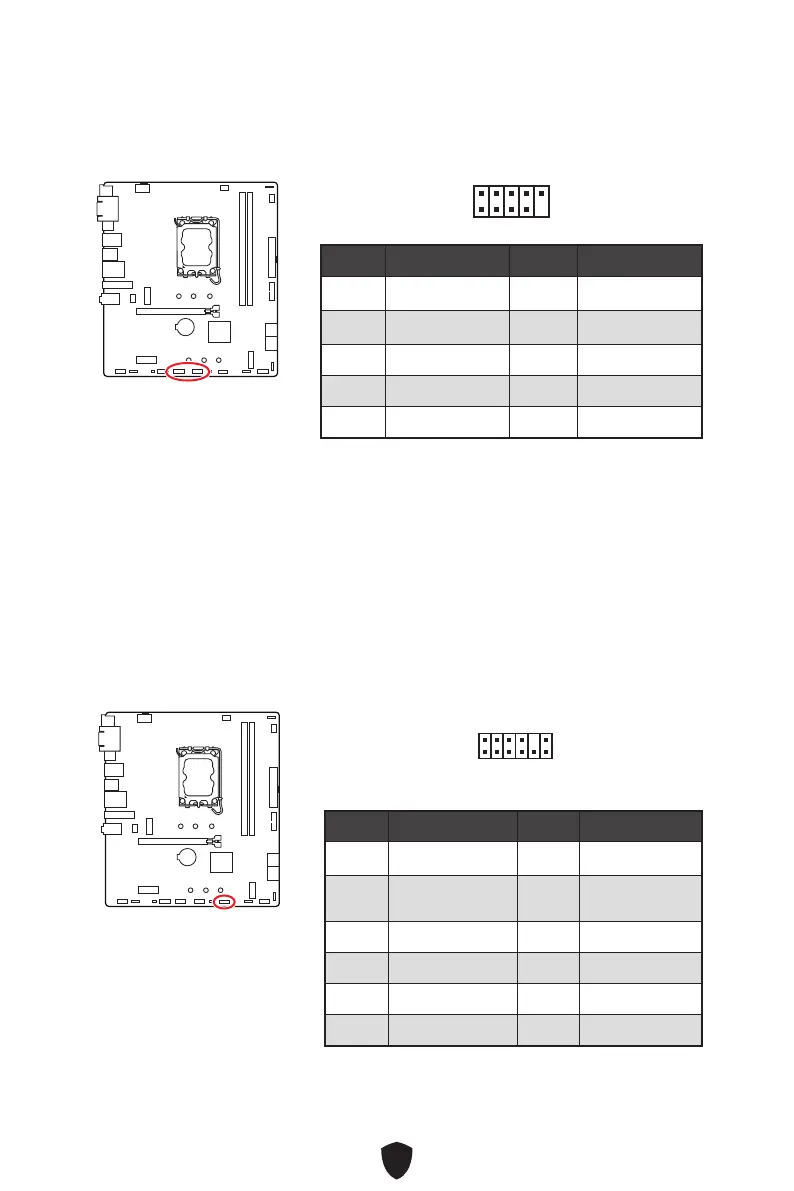

1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
1
2 10
9



   
1 SPI Power 2 SPI Chip Select
3
Master In Slave Out
(SPI Data)
4
Master Out Slave In
(SPI Data)
5 Reserved 6 SPI Clock
7 Ground 8 SPI Reset
9 Reserved 10 No Pin
11 Reserved 12 Interrupt Request
1
2 12
11

MSI B760M BOMBER DDR4 Specifications

General

Chipset	Intel B760
Form Factor	Micro ATX
Memory Type	DDR4
Socket	LGA 1700
Memory Slots	4
Max Memory	128GB
Audio	Realtek ALC897
Video Outputs	1x HDMI, 1x DisplayPort
PCIe Slots	1x PCIe 3.0 x1
Memory Speed	Up to 5333 MHz (OC)
Storage Interface	4x SATA 6Gb/s
USB Ports	2 x USB 3.2 Gen 1, 4x USB 2.0
LAN	Realtek RTL8111H
