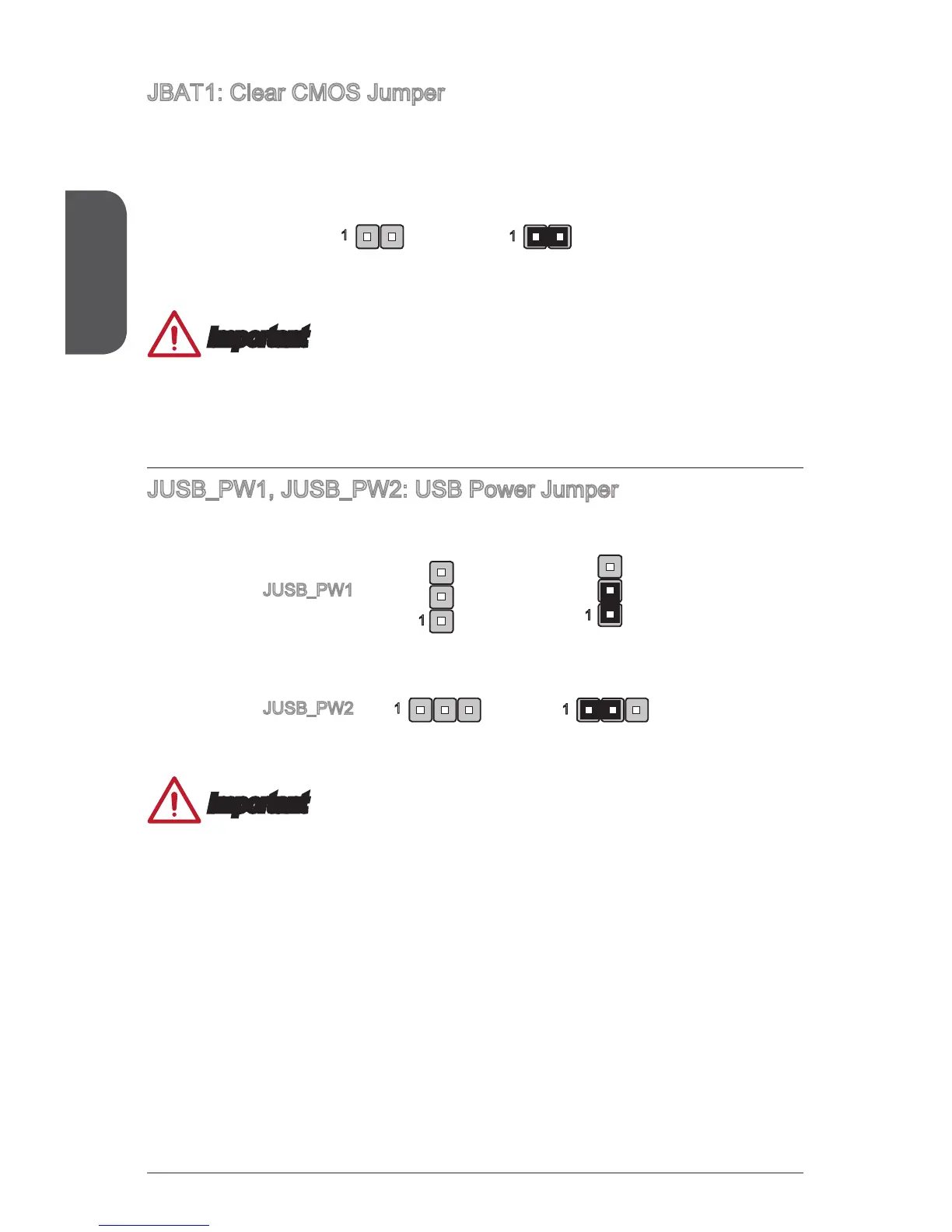

JBAT1: Clear CMOS Jumper
There is CMOS RAM onboard that is external powered from a battery located on the
motherboard to save system conguration data. With the CMOS RAM, the system
can automatically boot into the operating system (OS) every time it is turned on. If
you want to clear the system conguration, set the jumpers to clear the CMOS RAM.
Keep Data Clear Data
1
1
Important
You can clear the CMOS RAM by shorting this jumper while the system is o.
Afterwards, open the jumper . Do not clear the CMOS RAM while the system is on
because it will damage the motherboard.
JUSB_PW1, JUSB_PW2: USB Power Jumper
This jumper allows you to enable/ disable the “Wakeup from S3/S4/S5 by USB and
PS/2 device” function.
1
1
Enabled Disabled (Default)
1
1
Enabled Disabled (Default)
JUSB_PW1
JUSB_PW2
Important
If you set the jumper to Enabled, the power supply must be able to provide at least
2A currents.
