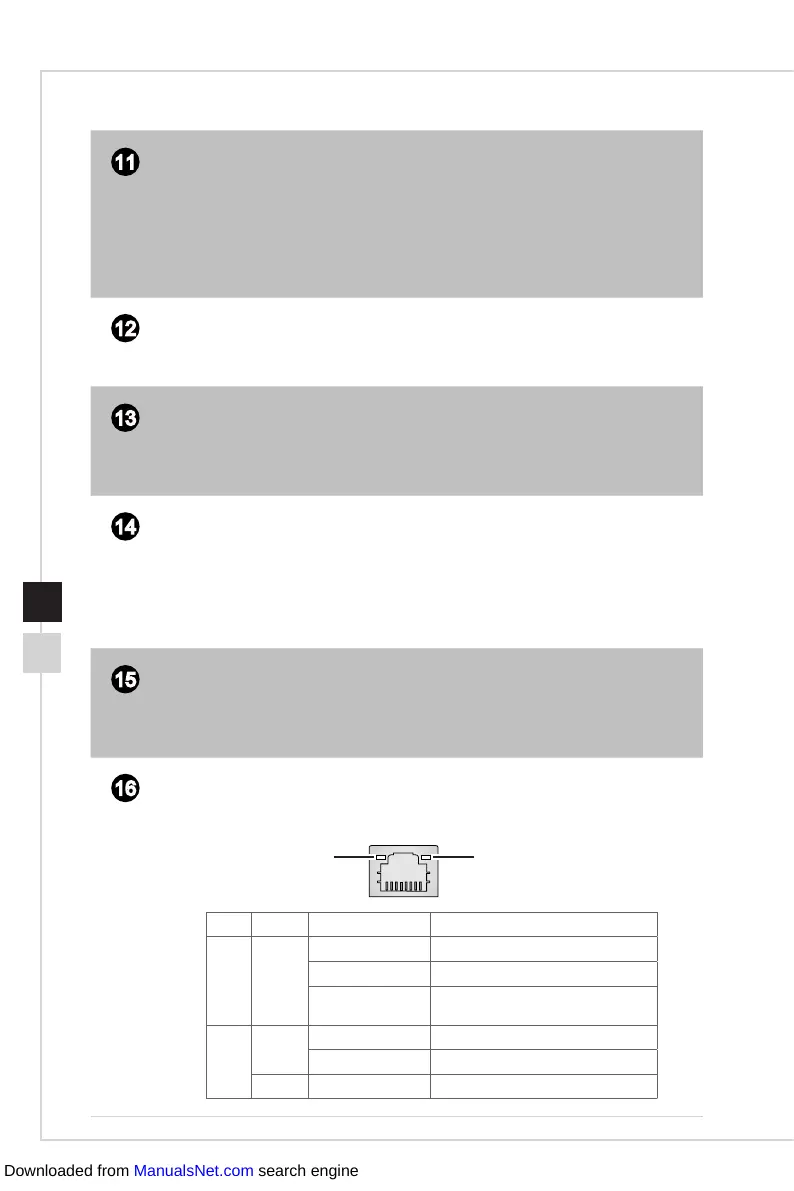

Overview
1-111-10
11
DVI-D Port (Optional)
The DVI-D (Digital Visual Interface-Digital) connector allows you to
connect a LCD monitor� It provides a high-speed digital interconnection
between the computer and its display device� To connect an LCD
monitor, simply plug your monitor cable into the DVI-D connector, and
make sure that the other end of the cable is properly connected to your
monitor (refer to your monitor manual for more information�)
12
DisplayPort
DisplayPort is a digital display interface standard� This connector is used
to connect a monitor with DisplayPort inputs�
13
USB 3.1 Gen 2 Port
USB 3�1 Gen 2, the SuperSpeed USB 10Gbps, delivers high-speed data
transfer for various devices, such as storage devices, hard drives, video
cameras, etc�
14
USB 3.1 Gen 2 Port (Type-C)
USB 3�1 Gen 2, the SuperSpeed USB 10Gbps, delivers high-speed data
transfer for various devices, such as storage devices, hard drives, video
cameras, etc�
The slim and sleek USB Type-C connector features reversible plug
orientation and up to 5V/3A power supply for external devices�
15
USB 3.1 Gen 1 Port
USB 3�1 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed
data transfer for various devices, such as storage devices, hard drives,
video cameras, etc�
16
LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local
Area Network (LAN)� You can connect a network cable to it�
Green/ OrangeYellow
LED Color LED State Condition
Left Yellow O LAN link is not established�
On (steady state) LAN link is established�
On (blinking) The computer is communicating with
another computer on the LAN�
Right Green O 10 Mbit/sec data rate is selected�
On 100 Mbit/sec data rate is selected�
Orange On 1000 Mbit/sec data rate is selected�
