Connectors

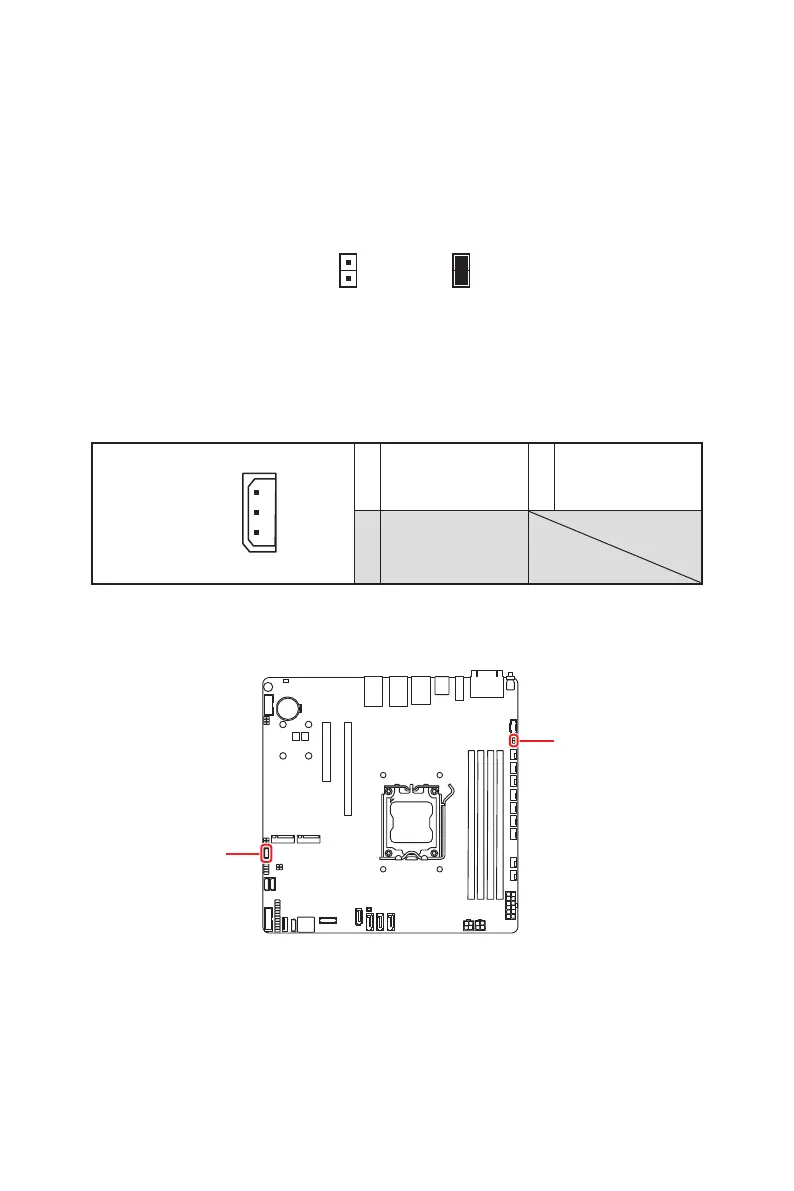

JCHASSIS: Chassis Intrusion Header
This connector connects to the chassis intrusion switch cable. If the chassis is opened,
the chassis intrusion mechanism will be activated. The system will record this status
and show a warning message on the screen. To clear the warning, you must enter the
BIOS utility and clear the record.
Normal
(default)
JCHASSIS
Trigger the
chassis intrusion
event
JIPMB1: IPMB Box Header
Intelligent Platform Management Bus (IPMB) box header is used to connect various
management components, such as Baseboard Management Controller (BMC).
JIPMB1
1
3
1
SMB_IPMB_DAT
2
GND
3
SMB_IPMB_CLK
JCHASSIS
JIPMB1
