1-19

MS-7721

Chapter 1

Internal Connectors

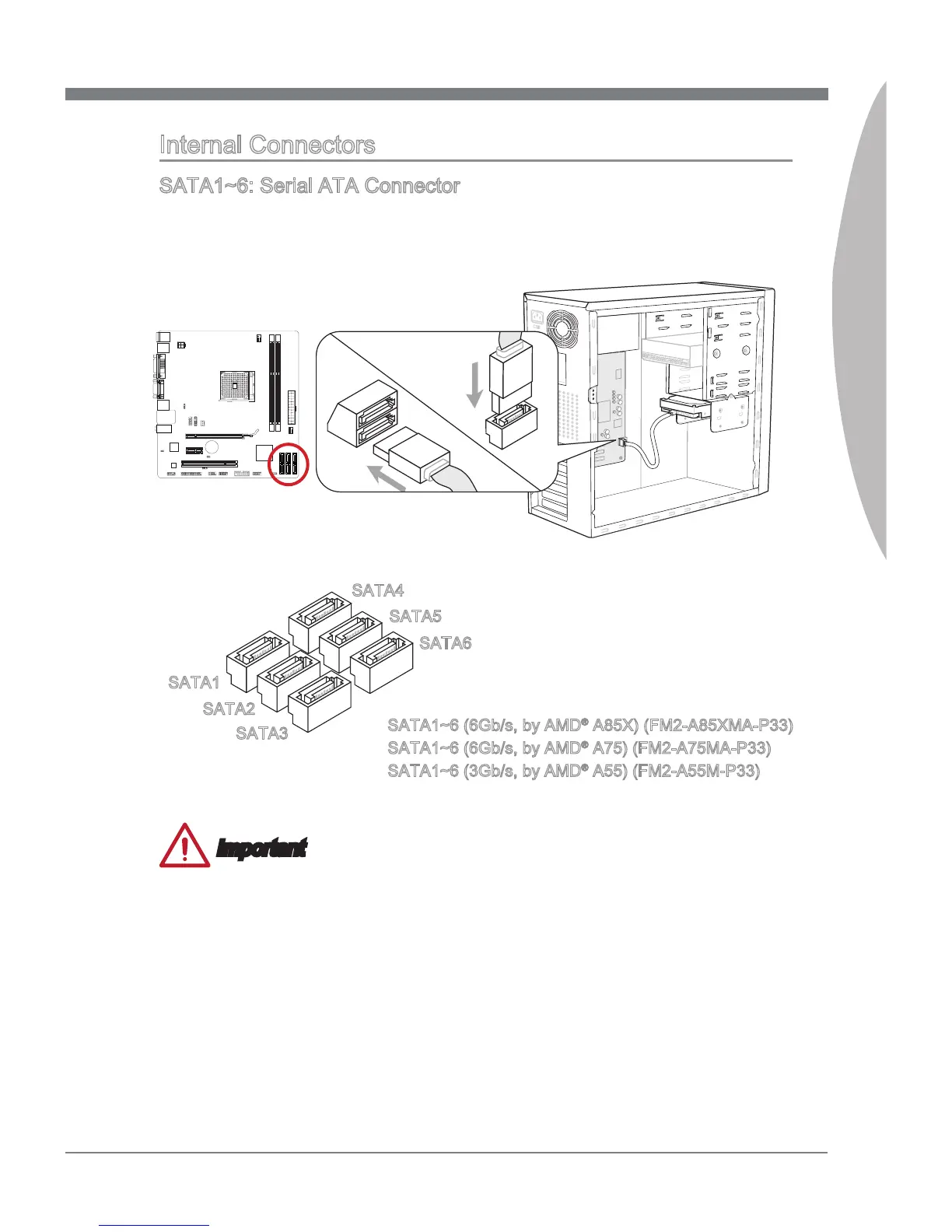

SATA1~6: Seral ATA Connector

Ths connector s a hgh-speed Seral ATA nterface port. Each connector can connect

to one Seral ATA devce. Seral ATA devces nclude dsk drves (HDD), sold state

drves (SSD), and optcal drves (CD/ DVD/ Blu-Ray).

* The MB layout n ths 󰘰gure s for reference only.

SATA4

SATA2

SATA6

SATA1~6 (6Gb/s, by AMD

A85X) (FM2-A85XMA-P33)

SATA1~6 (6Gb/s, by AMD

A75) (FM2-A75MA-P33)

SATA1~6 (3Gb/s, by AMD

A55) (FM2-A55M-P33)

SATA1

SATA3

SATA5

Important

Many Seral ATA devces also need a power cable from the power supply. Such

devces nclude dsk drves (HDD), sold state drves (SSD), and optcal drves (CD /

DVD / Blu-Ray). Please refer to the devce’s manual for further nformaton.

Many computer cases also requre that large Seral ATA devces, such as HDDs,

SSDs, and optcal drves, be screwed down nto the case. Refer to the manual that

came wth your computer case or your Seral ATA devce for further nstallaton n

structons.

Please do not fold the Seral ATA cable at a 90-degree angle. Data loss may result

durng transmsson otherwse.

SATA cables have dentcal plugs on ether sdes of the cable. However, t s rec

ommended that the 󰘱at connector be connected to the manboard for space savng

purposes.

•
