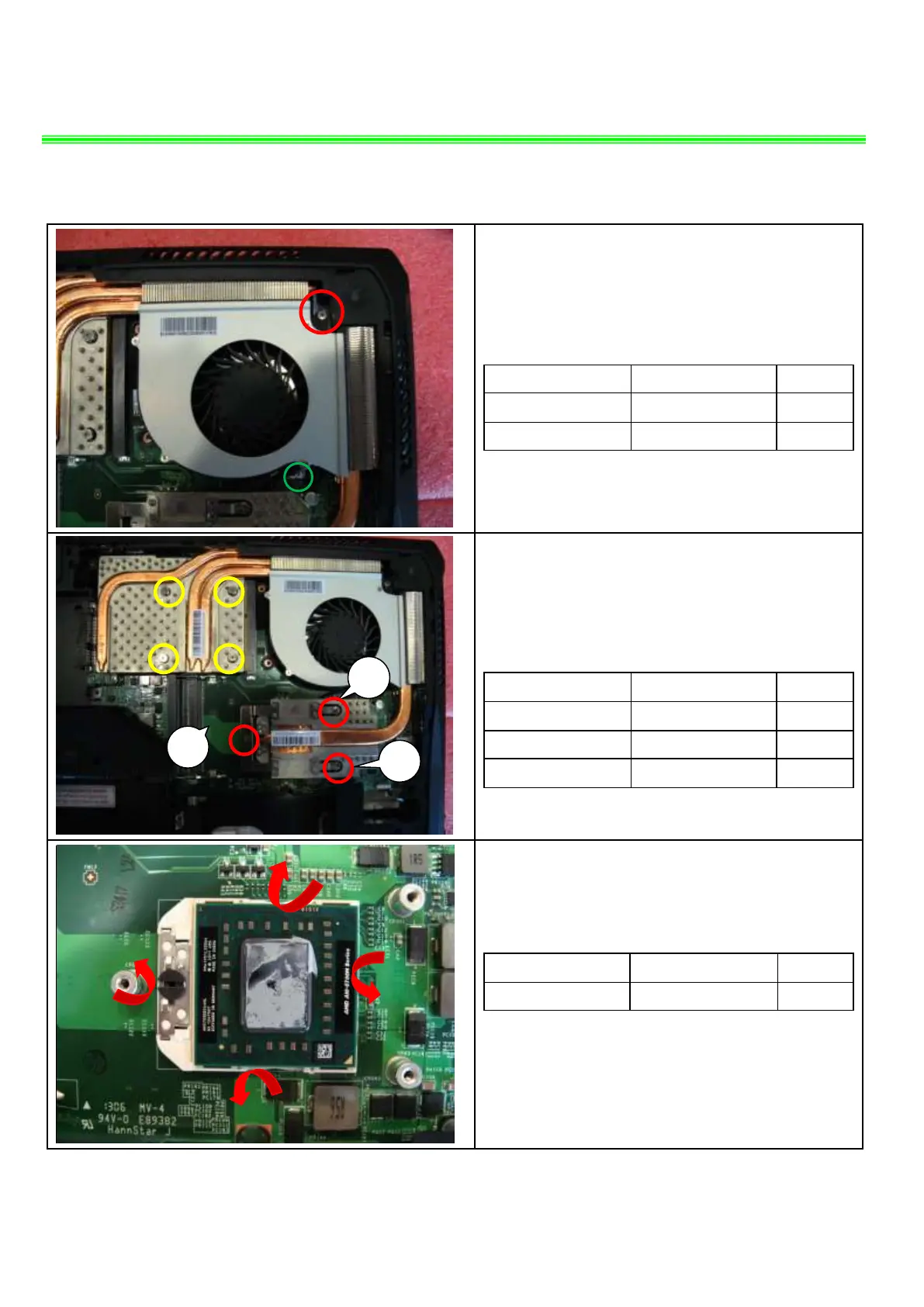

■ 5、THERMAL-KIT、CPU AND DRAM
5.1:Remove the 1 screw(M2.5*5mm) and FAN
cable, after that remove the Fan.
Attention：the screw driver torque is 1.8-2.2Kgf-cm
Component
P/N
Qty
Screw
E43-1255002-G68
1
FAN
E33-0800183-MC2
1
5.2: Remove the 3 screws (M2.5*5mm) and 4
spring screws, after that remove the two Heatsink.
Attention：the screw driver torque is 1.8-2.2Kgf-cm
Component
P/N
Qty
Screw
E43-1255002-G68
3
Heatsink
E31-0406091-Y31
1
Heatsink
E31-0803750-Y31
1
5.3：Open the CPU Slot with Screw Driver, then
remove CPU Module as below.
Component
P/N
Qty
CPU
A10-K103506-A08
1
